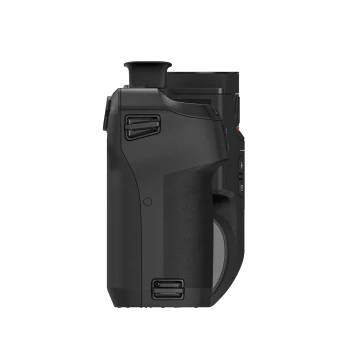

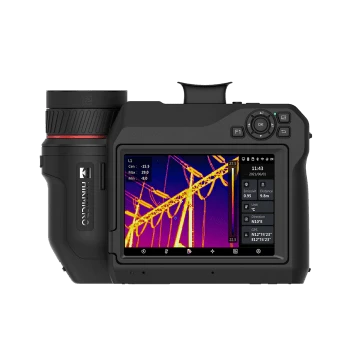

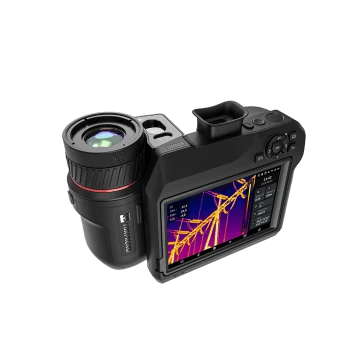

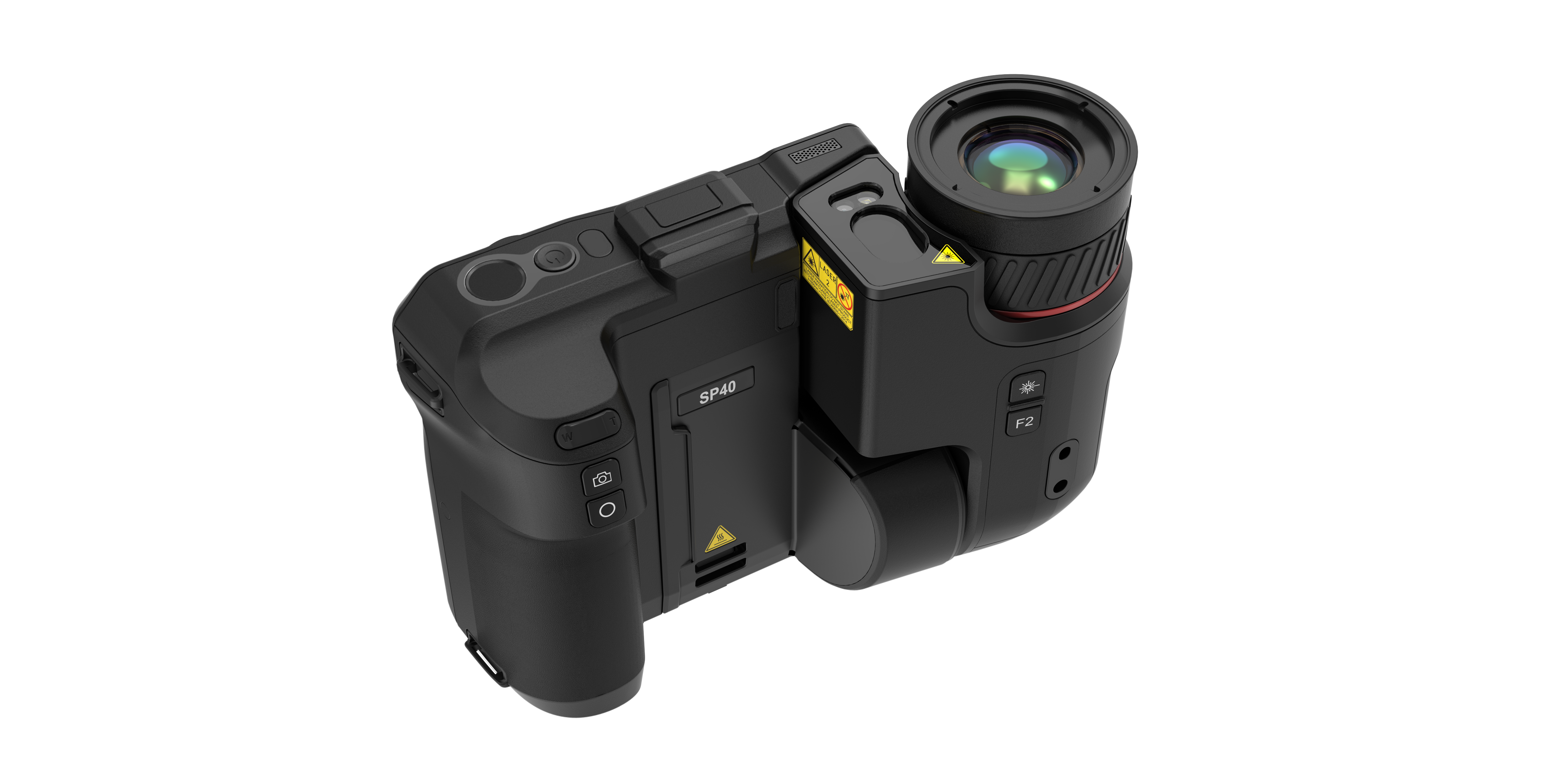

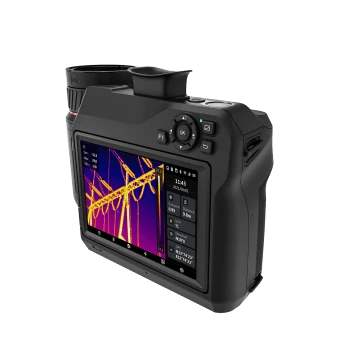

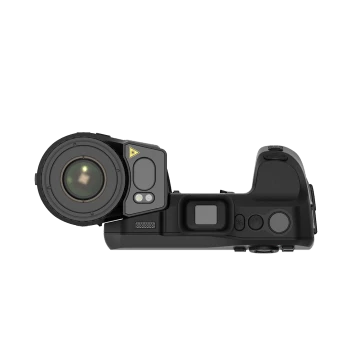

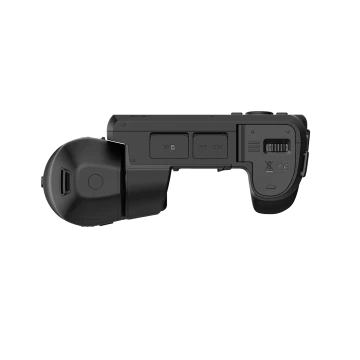

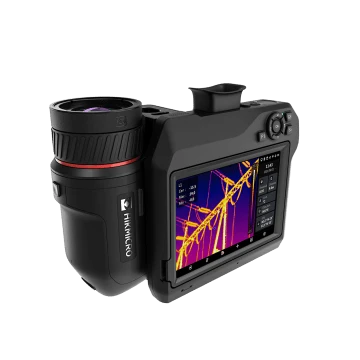

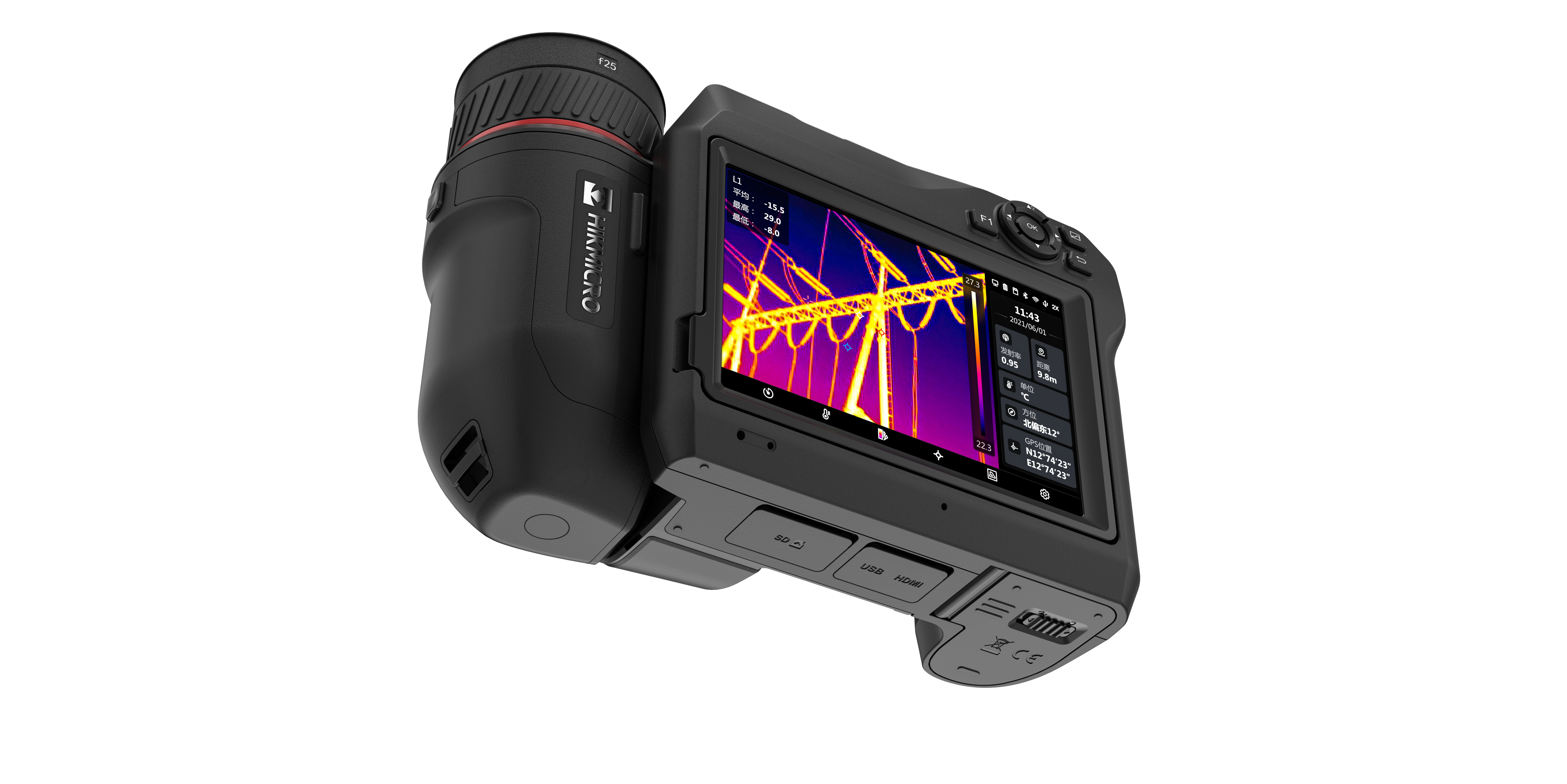

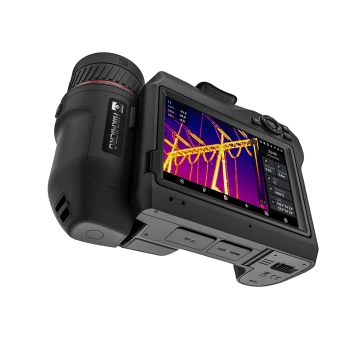

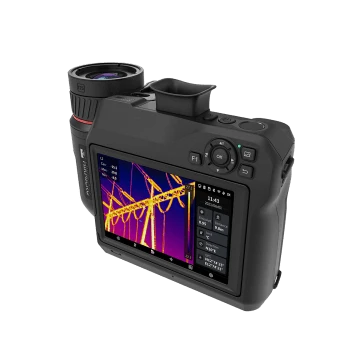

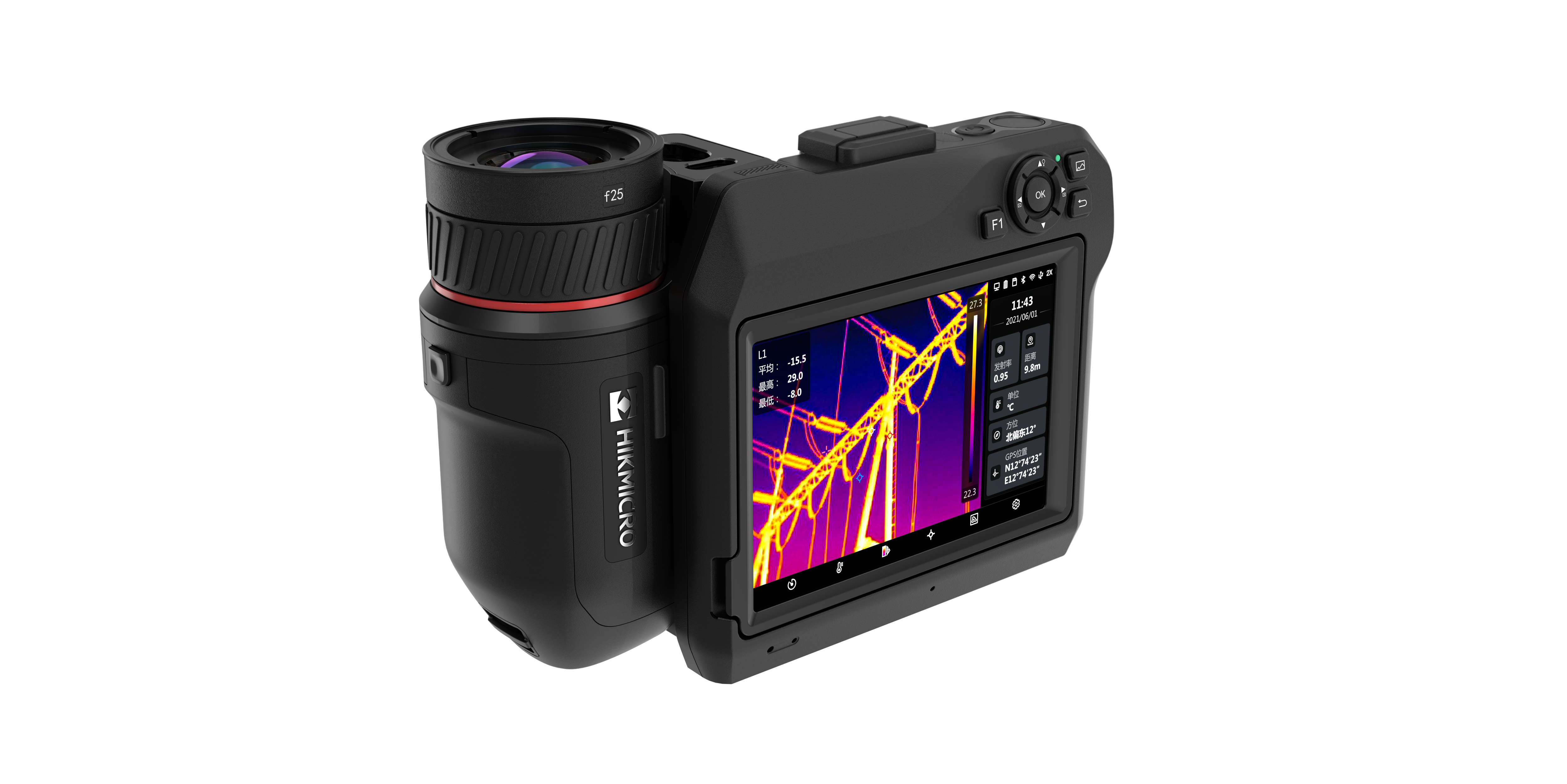

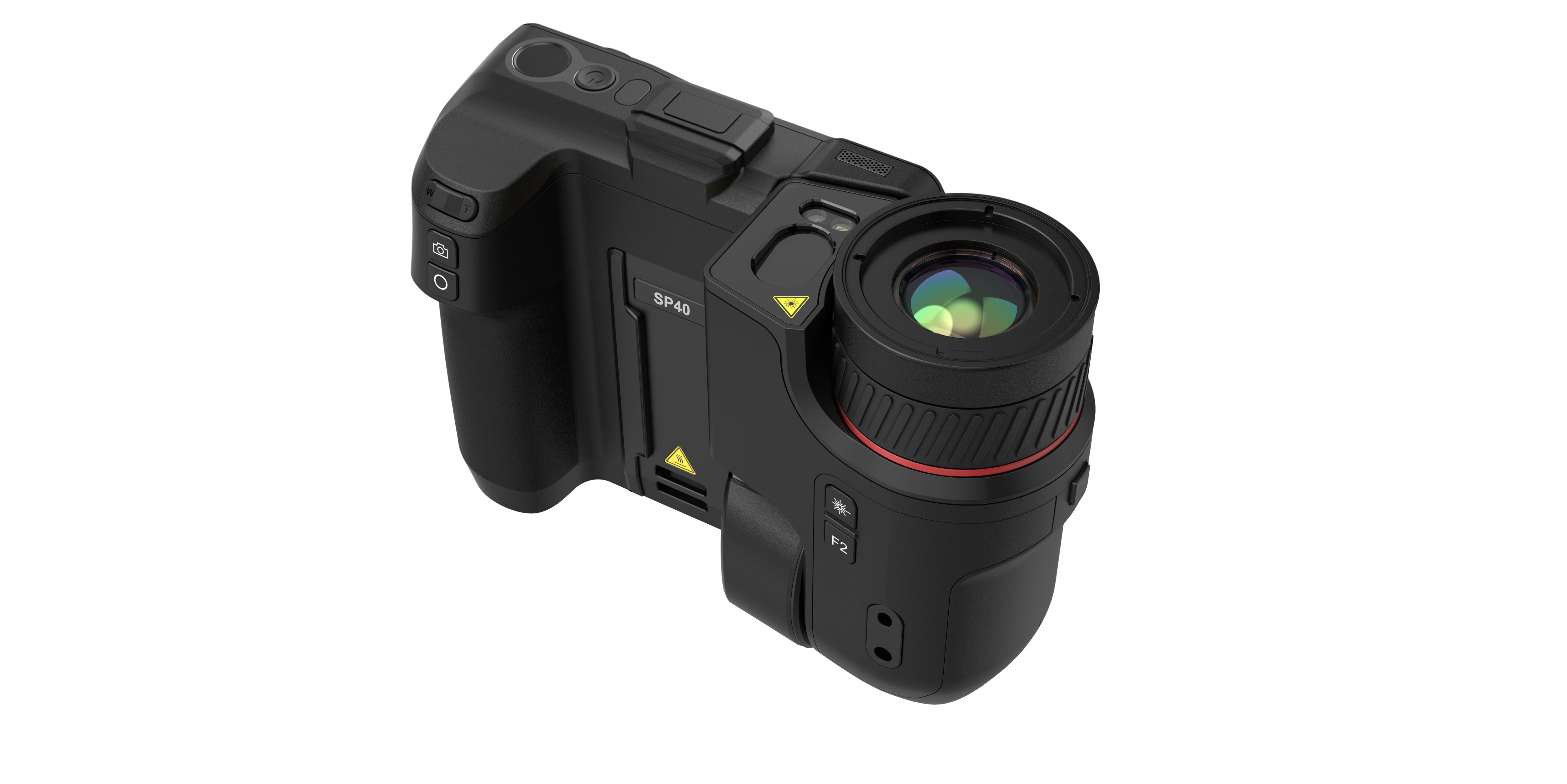

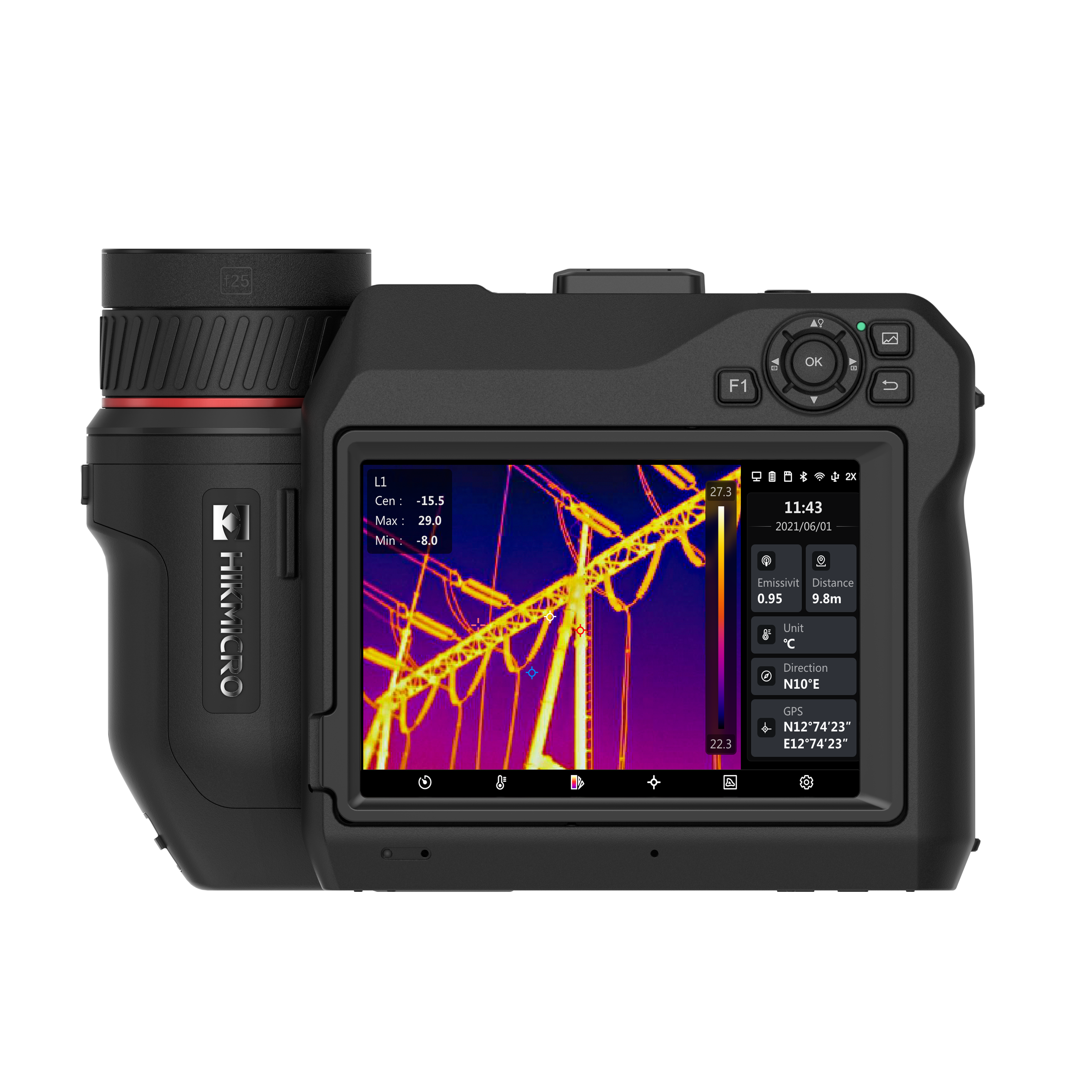

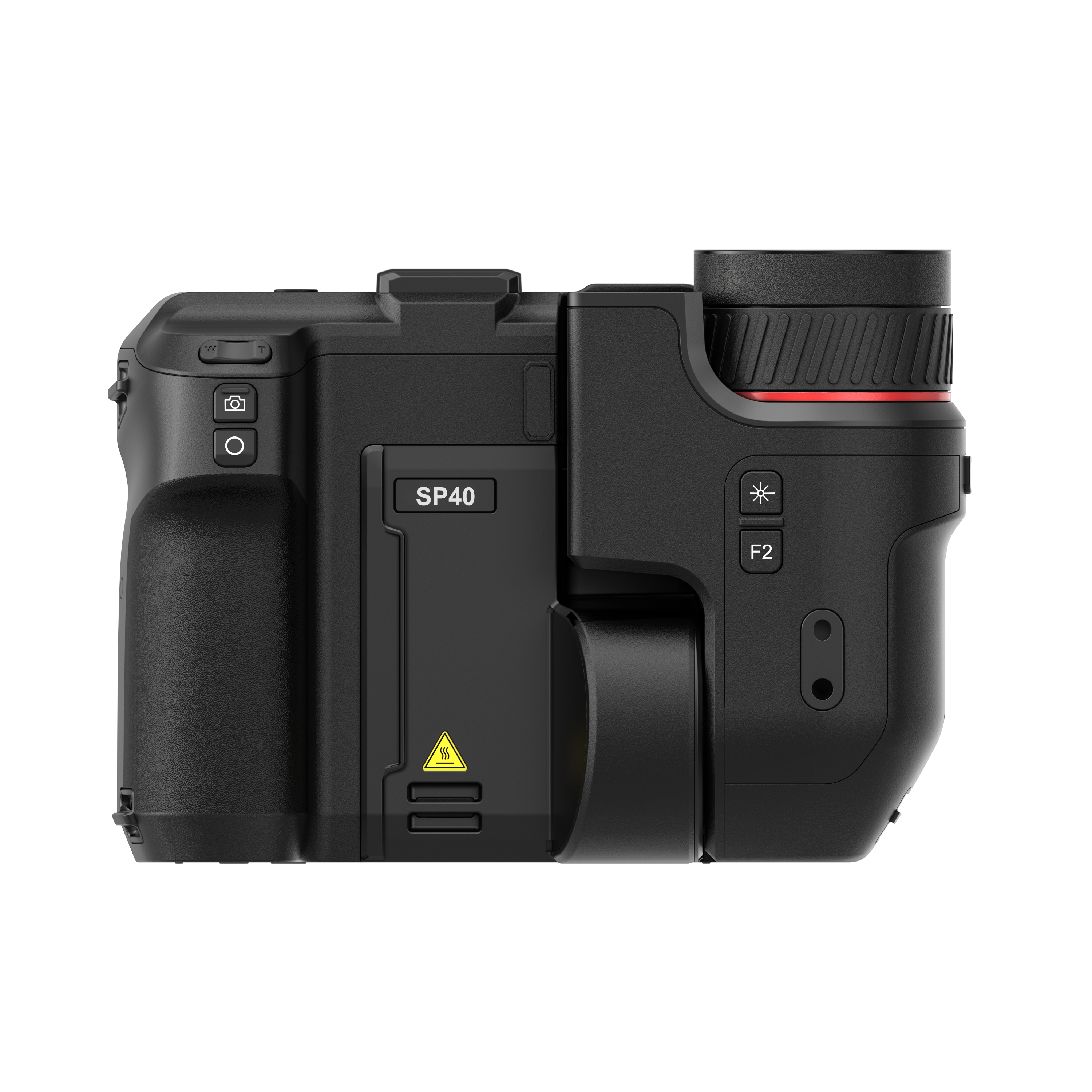

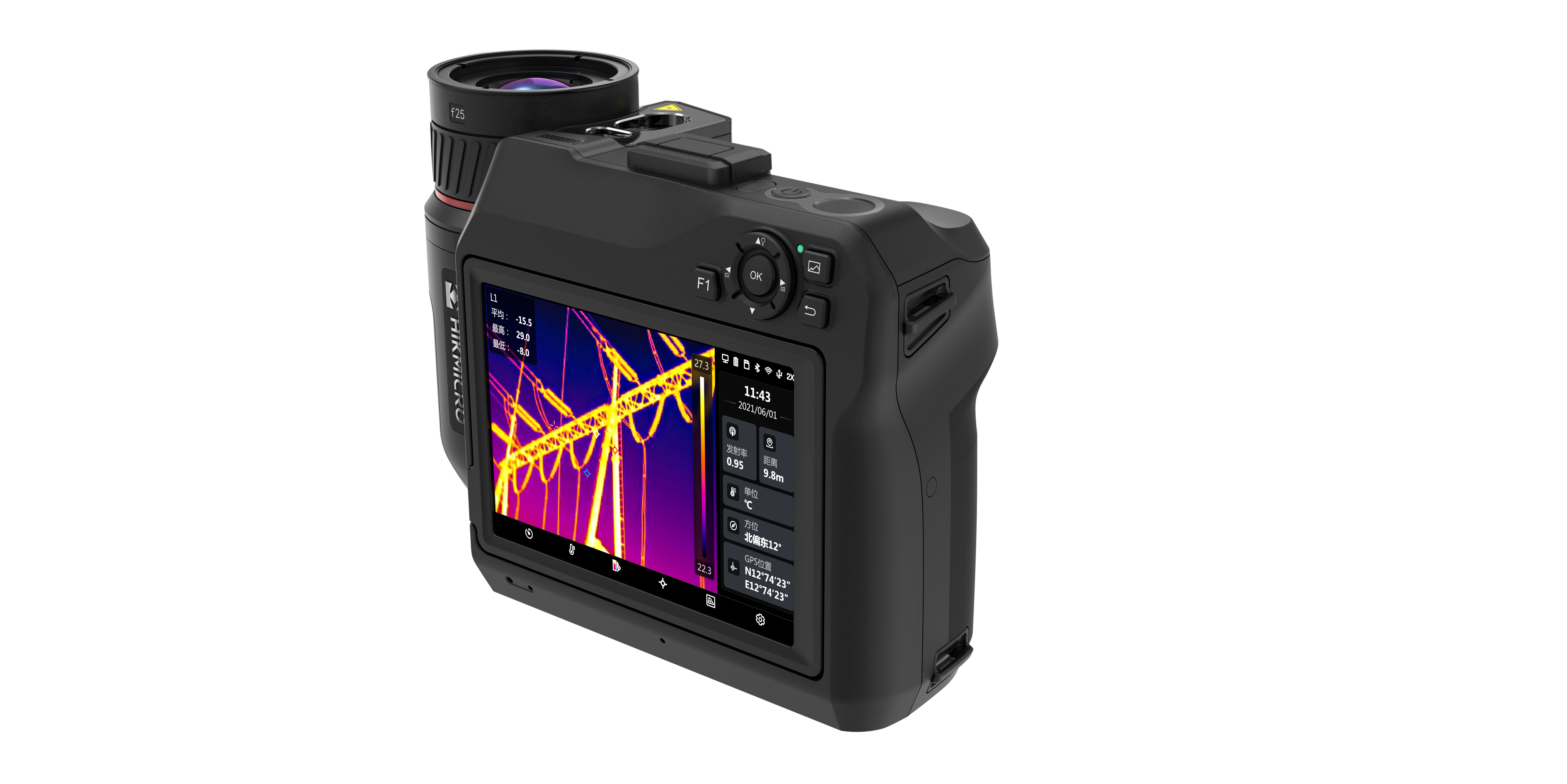

HIKMICRO SP40

Product Code:

SP40

Warranty Period:

The entire product is guaranteed for 3 years, the detector for 10 years, and the battery for 2 years.

Contact us

Infrared Image

IR Resolution

480 × 360 (172,800 pixels)

IR Resolution

< 30 mK (@ 30 °C, F#=1.0)

Image Scanning Speed

30 Hz

Pixel Pitch

17 μm

Spectral Range

7.5 - 14 μm

Focal Length

L6: 77,4 mm; L9: 51,4 mm; L19: 25,6 mm; L37: 12,6 mm

F-Number

L6: F1.2; L9: F1.1; L19: F1.0; L37: F1.0

FOV (Field of View)

L6: 6° × 4,5°; L9: 9° × 6,8°; L19: 18,7° × 14°; L37: 37,3° × 27,8°

Spatial Resolution (IFOV)

L6: 0,22 mrad; L9: 0,33 mrad; L19: 0,66 mrad; L37: 1,35 mrad

Minimum Focus Distance

0.2 m

Focus

Laser Automatic, Continuous Automatic, Automatic, Manual, Touch Automatic

Focus Mode

Laser Automatic, Continuous Automatic, Automatic, Manual, Touch Automatic

Focus Speed

About 1 second

SuperIR

960 x 720 (691.200 piksel)

Min. Focal Length

L6: 2 m (6,56 ft); L9: 1 m (3,3 ft); L19: 0,15 m (0,49 ft); L37: 0,15 m (0,49 ft)

Screen

Visual Camera

3264 × 2448 (8 MP)

Screen

1280 × 720 Resolution, 5” LCD Touch Screen

Screen Brightness

Manual / Automatic

Digital Zoom

1.x ila 12.x

Color Palettes

White Hot, Black Hot, Rainbow, Iron Spring, Red Hot, Fusion, Rain, Blue Red

Display Modes

Thermal / Visual / Fusion / PIP / Mixing

Color Alarm

Top/Bottom/Range/Insulation/Condensation

Focus Mode Palette

Top/Bottom/Range

Measurement and Analysis

Temperature Range

Range -40℃ to 150℃（-40°F to 302°F) , Range 100℃ to 650℃（212°F to 1202°F）

Sharpness

±1°C (±1.8°F): 0 to 100°C (32 to 212°F); ±1%: 100 to 150°C (212 to 302°F); ±2°C (±3.6°F): -40 to 0°C (-40 to 32°F); ±2%: 150 to 650°C (302 to 1202°F)

Measurement Tools

Center Point, Hot Point, Cold Point User definable: Delta T, 10 points, 1 line, 5 rectangles and 5 circles

Level and Scope Mode

Auto/Manual/1 Touch Touchscreen

Examination Routine

Yes

Data Storage and Communication

Storage Medium

Removable 128GB SD Card

Image Storage Capacity

Approximately 120,000 Views

Add Notes

Voice note: up to 60 seconds; Text note: up to 200 characters

Voice note: up to 60 seconds; Text note: up to 200 characters

Approximately 500 hours

Video File Format

MP4 video and radiometric video

Image Format

Radyometrik JPEG

Radiometric Infrared Video Stream (Compressed)

Over UVC, Wi-Fi

FEATURES

EXPLANATION

Wifi

802.11 b/g/n (2,4 GHz ve 5 GHz)

Bluetooth

Bluetooth 4.2

USB Interface

USB Tip-C

HDMI Interface

HDMI-D

Laser Rangefinder

Indoor distance: 50 m (164 ft); Outdoor distance: 10 m (33 ft).

GPS and Compass

Yes

Battery Type

Replaceable and rechargeable Li-ion battery

Battery Runtime

Approximately 4 hours

Battery Charging Time

Approximately 2.5 hours full charge

Power Saving Mode

Yes

Programmable Buttons

2

Protection Level

IP54, IEC 60529

Drop Test Height

1 m (3,28 ft), IEC 60068-2-31

Safety

EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-4, EN 61326-1

Vibration

2 gr, IEC 60068-2-6

Shock

25 gr, IEC 60068-2-27

Operating Temperature Range

-20°C to 50°C (-4°F to 122 °F)

Storage Temperature Range

-20°C to 60°C (-4°F to 140°F)

Relative humidity

< 95% non-condensing

Weight

Approximately 1451g (3.2lbs)

Dimension

210,1 × 141,03 × 87,8 mm (8,27 × 5,55 × 3,45 inç)

Tripod Mounting

ÇK ¼”-20

Laser Pointer

Yes

Guarantee

The entire product is guaranteed for 3 years, the detector for 10 years, and the battery for 2 years.

Laser

Yes, Class II, Wavelength: 635nm; Power: < 1mW

LED Light

Yes
