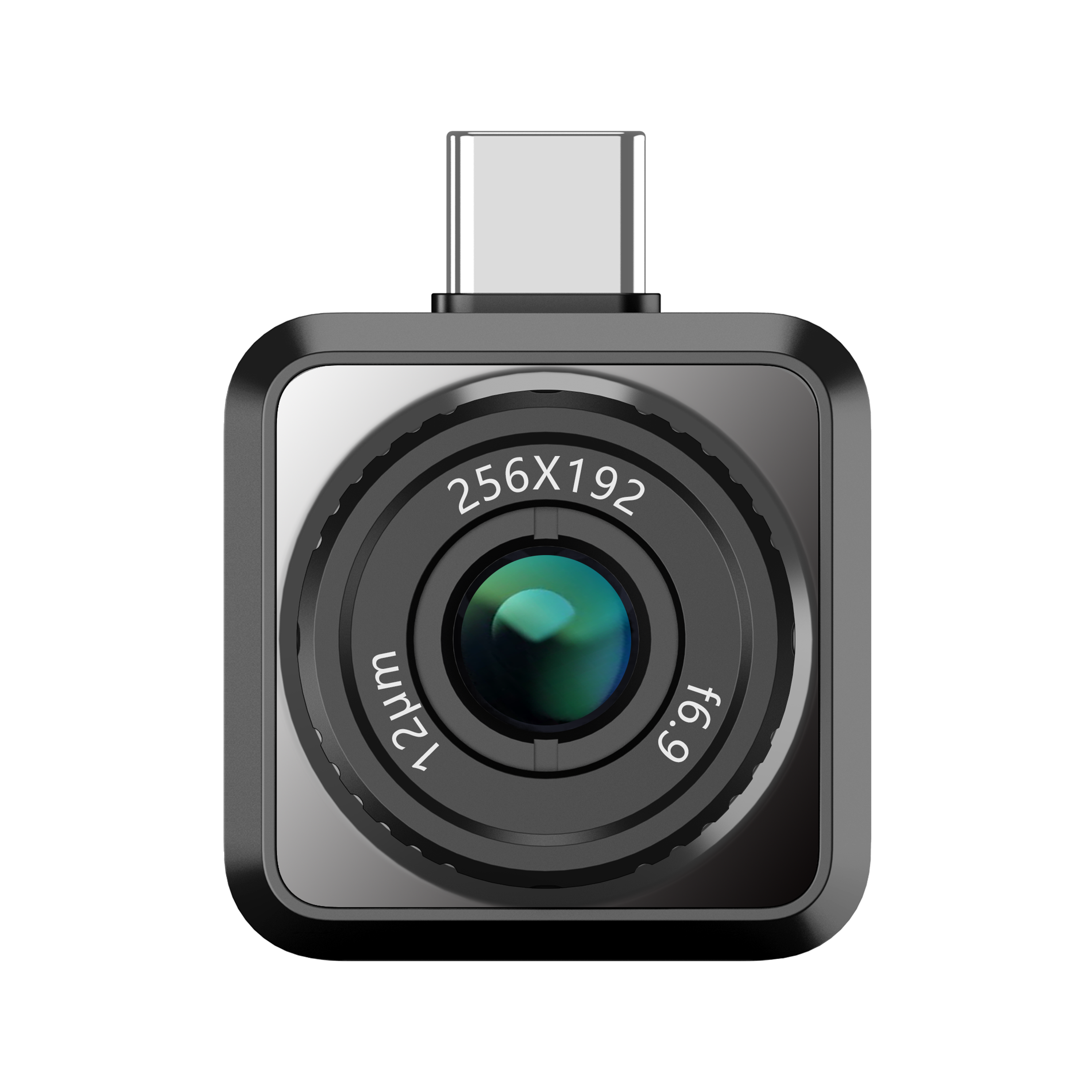

HIKMICRO Mini2Plus V2

Product Code:

Mini2Plus V2

Warranty Period:

Contact us

Infrared Image

IR Resolution

256 × 192 (49,152 pixels)

NETD (Thermal Sensitivity)

< 40 mK (@ 25 °C, F#=1.0)

Image Frequency

25 Hz

Detector Curtain

12 microns

Spectral Range

7,5 ila 14 μm

Focal Length

6,9 mm

F-number

F1.0

Field of View (FOV)

25° × 18,8°

Focus Mode

Manual Focus

Min. Focal Length

0,1 m (0,33 ft)

Image Display

Image Modes

Thermal, Visual (with phone camera)

Colour Palettes

White Hot, Black Hot, Rainbow, Iron Spring, Sepia, Colourful, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined

Measurement and Analysis

Object Temperature Range

Range -20℃ to 150℃（-4°F to 302°F） Range 100℃ to 400℃（212°F to 752°F）

Certainty

Maximum (±2°C/3.6°F, ±2%) for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)

Measurement Tools

Centre Point, Hot Point, Cold Point can be defined by the user: 3 points, 3 rectangles and 1 line.

Level and Scope Mode

Automatic/Manual
