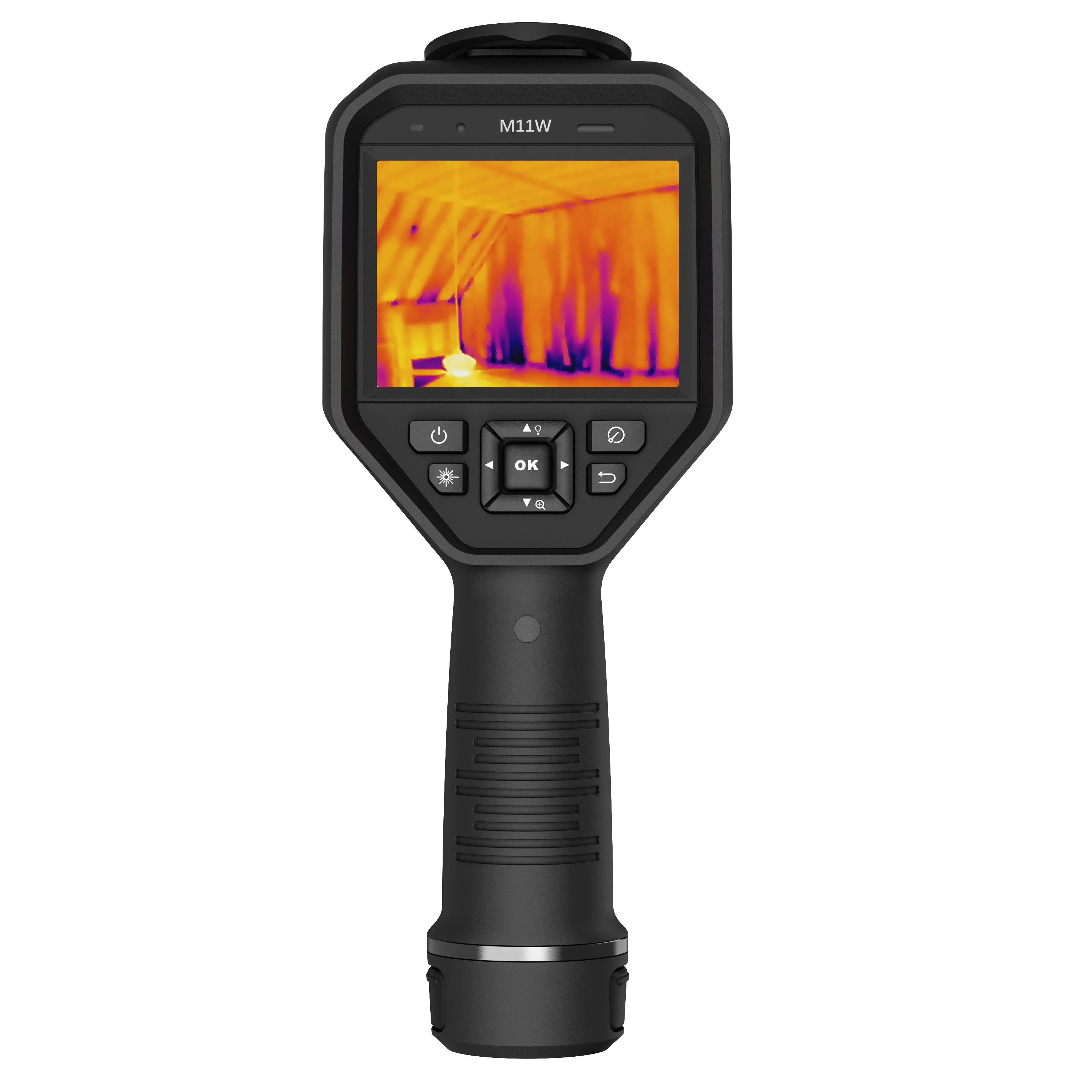

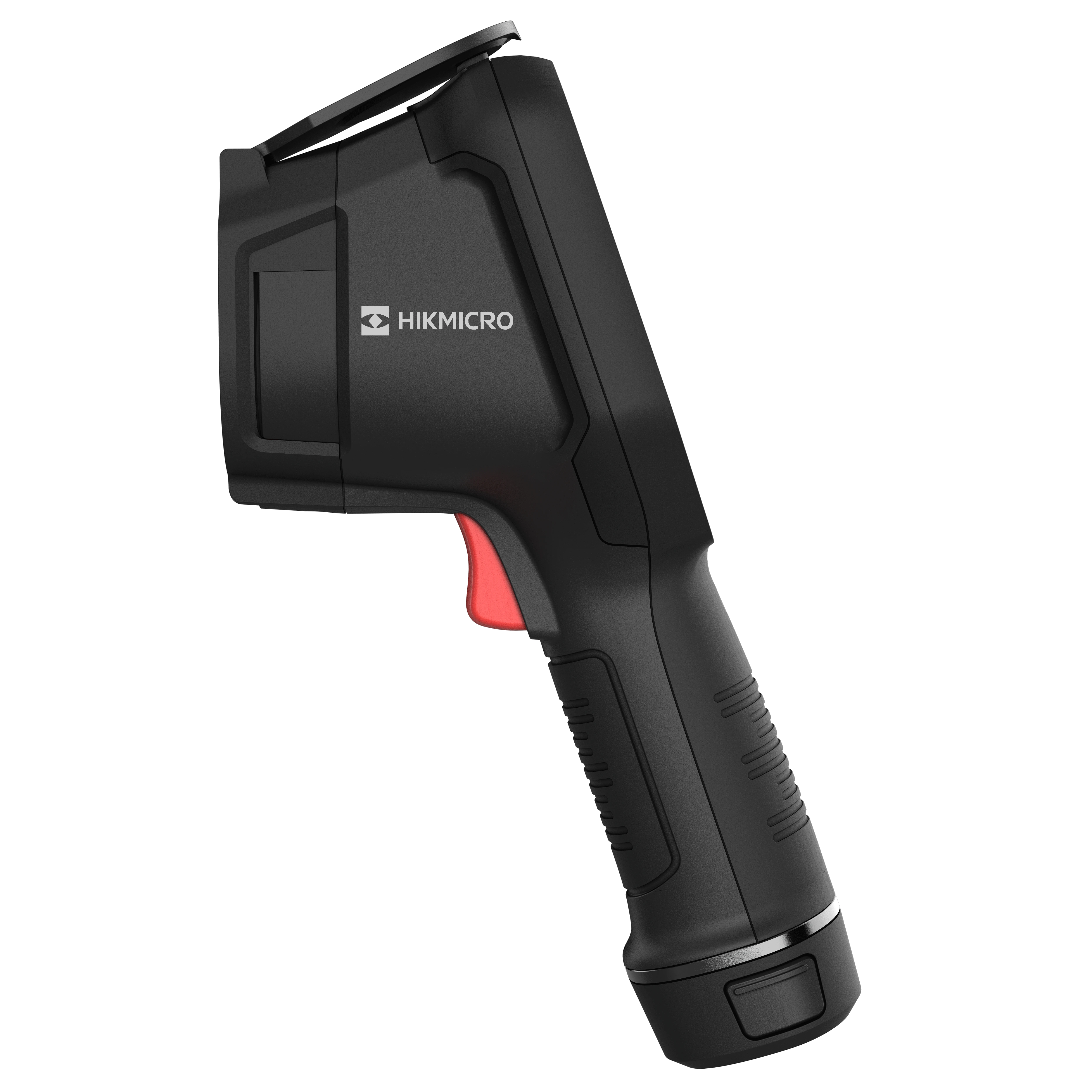

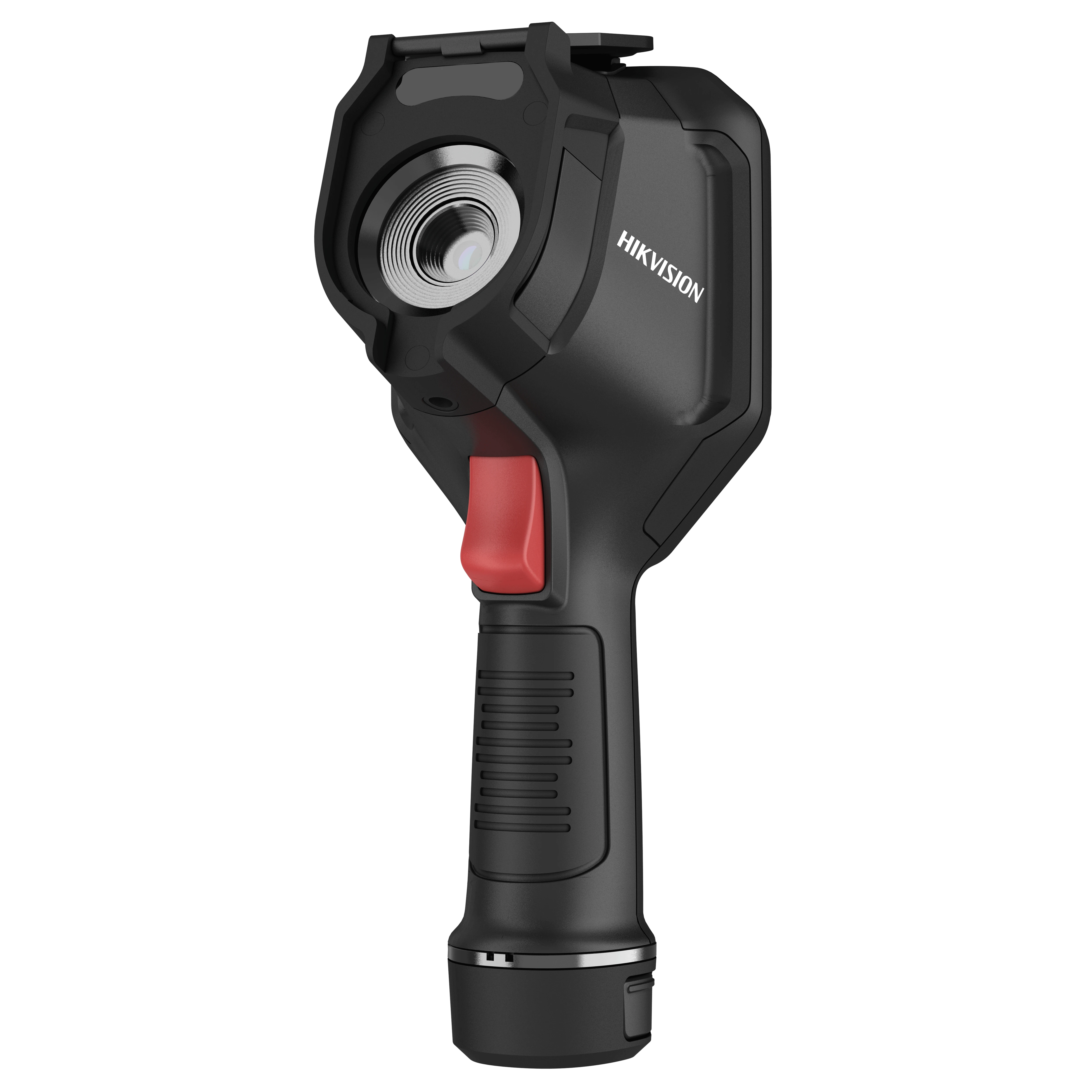

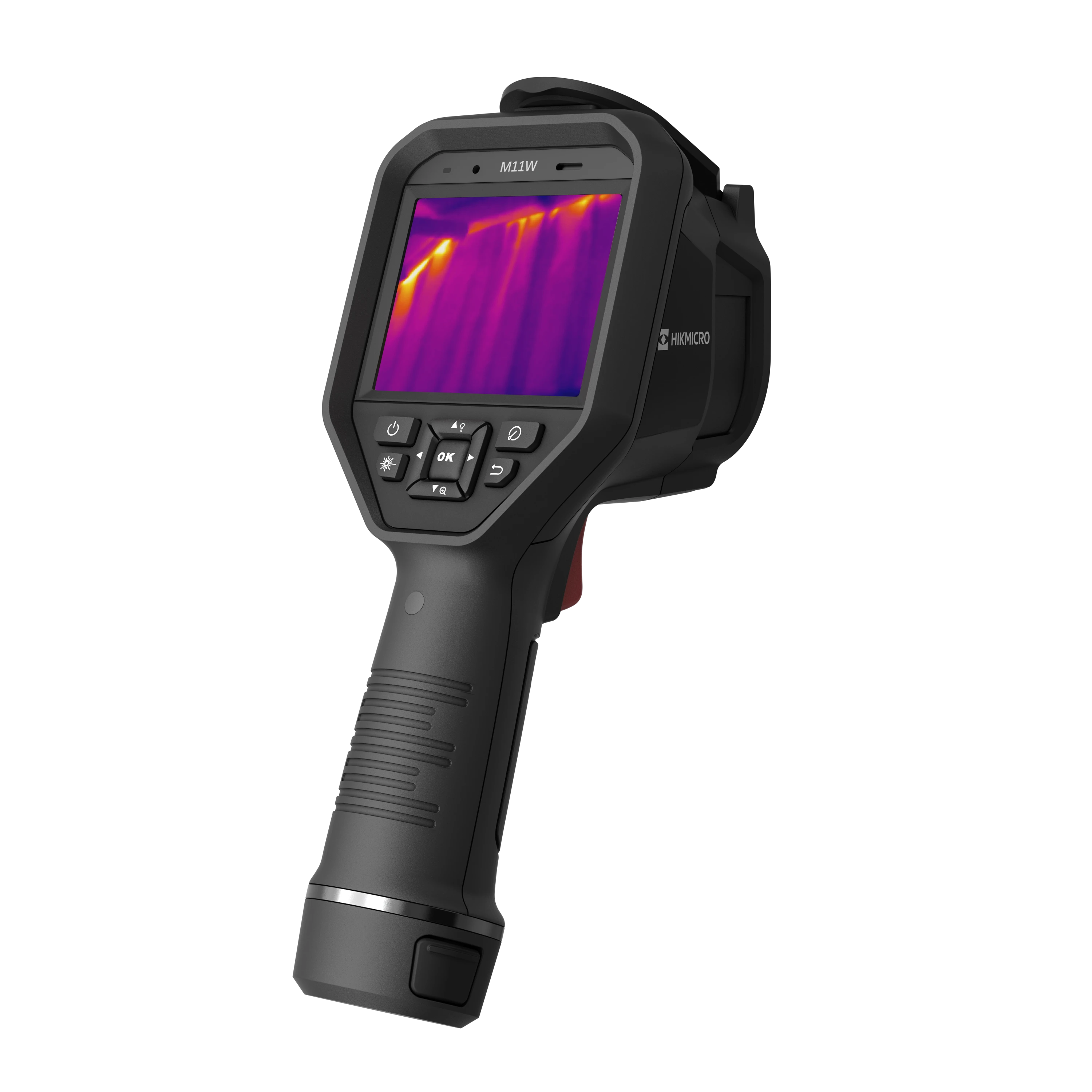

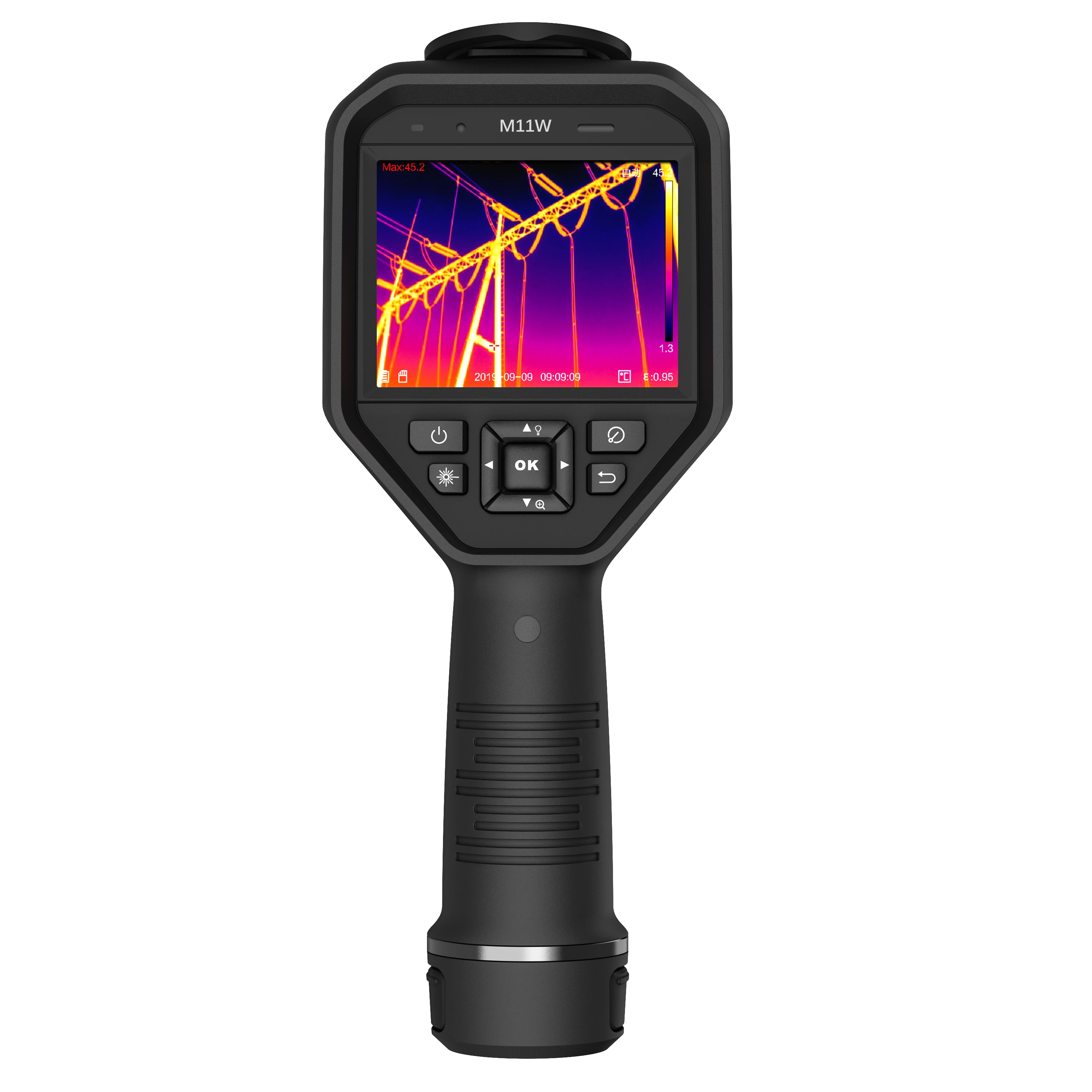

HIKMICRO M11W

Product Code:

M11W

Warranty Period:

3 Years

Contact us

Infrared Image

IR Resolution

192×144 (27,648 pixels)

NET

< 40 mK (@ 25 °C, F#=1.0)

Image Frequency

25 Hz

Detector Curtain

12 microns

Spectral Range

7.5 to 14 μm

Focal Length

3,6 mm

F-number

F1.0

Field of View (FOV)

37,2° x 27,8°

Spatial Resolution (IFOV)

3.33 mrad

Focus Mode

Freedom to Focus

SuperIR

384 × 288 (110,592 pixels)

Min. Focal Length

0,3 m (0,984 ft)

Image Display

Visual Camera

3264 × 2448 (8 MP)

View

640 × 480 Çözünürlük, 3.5" LCD Dokunmatik Ekran

Screen Brightness

Manual

Digital Zoom

1.0x to 8.0x continuous

Display Modes

Thermal/ Visual/ Fusion/ PIP/ Blending

Color Palettes

White Hot, Black Hot, Rainbow, Iron Spring, Red Hot, Fusion, Rain, Blue Red

Focus Mode Palette

Top/Bottom/Range

Color Alarm

Top/Bottom/Range/Insulation

Measurement and Analysis

Object Temperature Range

Range -20℃ to 150℃（-4°F to 302°F); Range 100℃ to 550℃（212°F to 1022°F）

Precision

Maximum (±2°C/3.6°F, ±2%) when ambient temperature is 15°C to 35°C (59°F to 95°F) and object temperature is above 0°C (32°F)

Measurement Tools

Center Point, Hot Point, Cold Point; User definable: 10 points, 1 line, 5 rectangles and 5 circles

Level and Scope Mode

Auto/Manual/1-Touch Screen

Data Storage and Communication

Storage Medium

Removable 32GB Micro SD Card

Image Storage Capacity

Approximately 60,000 Views

Explanations

Voice note: up to 60 seconds; Text note: up to 200 characters

Video Storage Capacity

Approximately 150 hours

Video File Format

MP4 video

FEATURES

EXPLANATION

Wifi

802.11 b/g/n (2,4 GHz and 5 GHz)

Bluetooth

Bluetooth 4.2

USB Interface

USB Tip-C

Battery Type

Replaceable and rechargeable Li-ion battery

Battery Runtime

Approximately 6 hours

Battery Charging Time

Approximately 4 hours full charge

Protection Level

IP54

Drop Test Height

2 m (6,56 ft)

Safety

IEC 61010-1

EMC

EN 50130-4, EN 55032, EN IEC 61000-3-2, EN 61000-3-3

Vibration

1 gr, IEC 60068-2-6

Shock

15 gr, IEC 60068-2-27

Operating Temperature Range

-10°C ila 50°C (-4°F ila 122°F)

Storage Temperature Range

-20°C ila 70°C (-4°F ila 158°F)

Relative humidity

< 95% non-condensing

Weight

Approx. 660g (1.46lb)

Dimension

244 × 100 × 104 mm (9,6 × 3,9 × 4,1 inç)

Tripod Mounting

ÇK ¼”-20

Guarantee

The entire product is guaranteed for 3 years, the detector for 10 years, and the battery for 2 years.

LED Light

Yes

Laser

Yes, Class II, Wavelength: 635nm; Power: < 1mW
