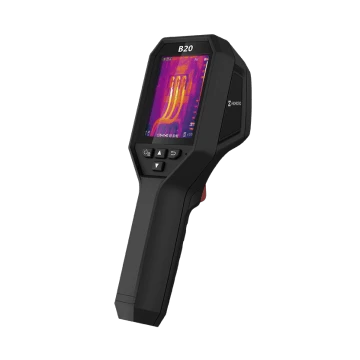

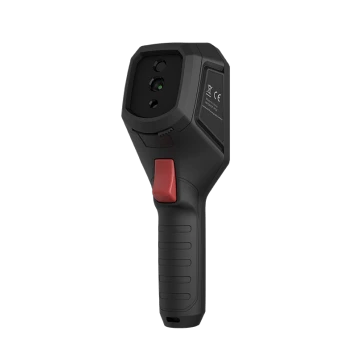

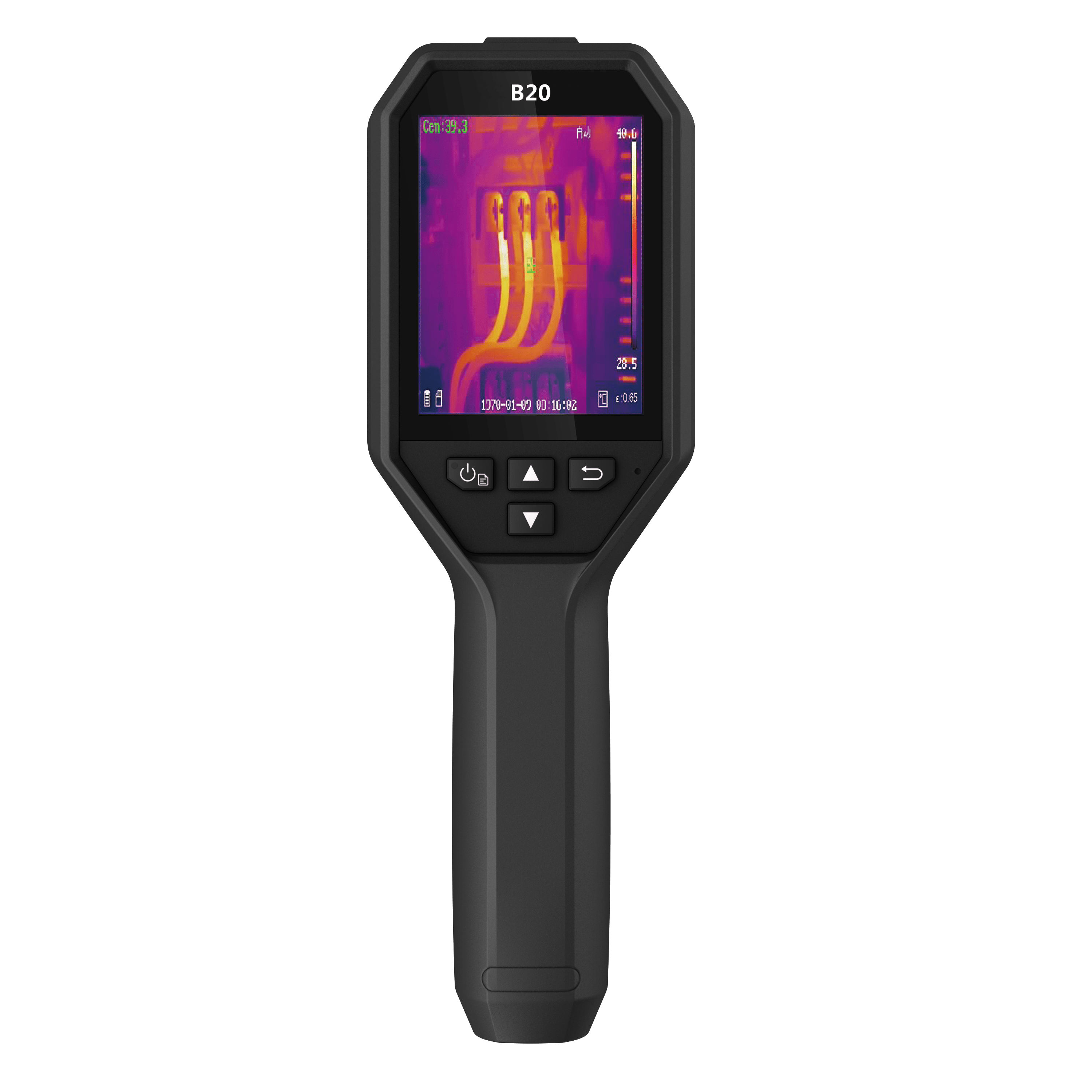

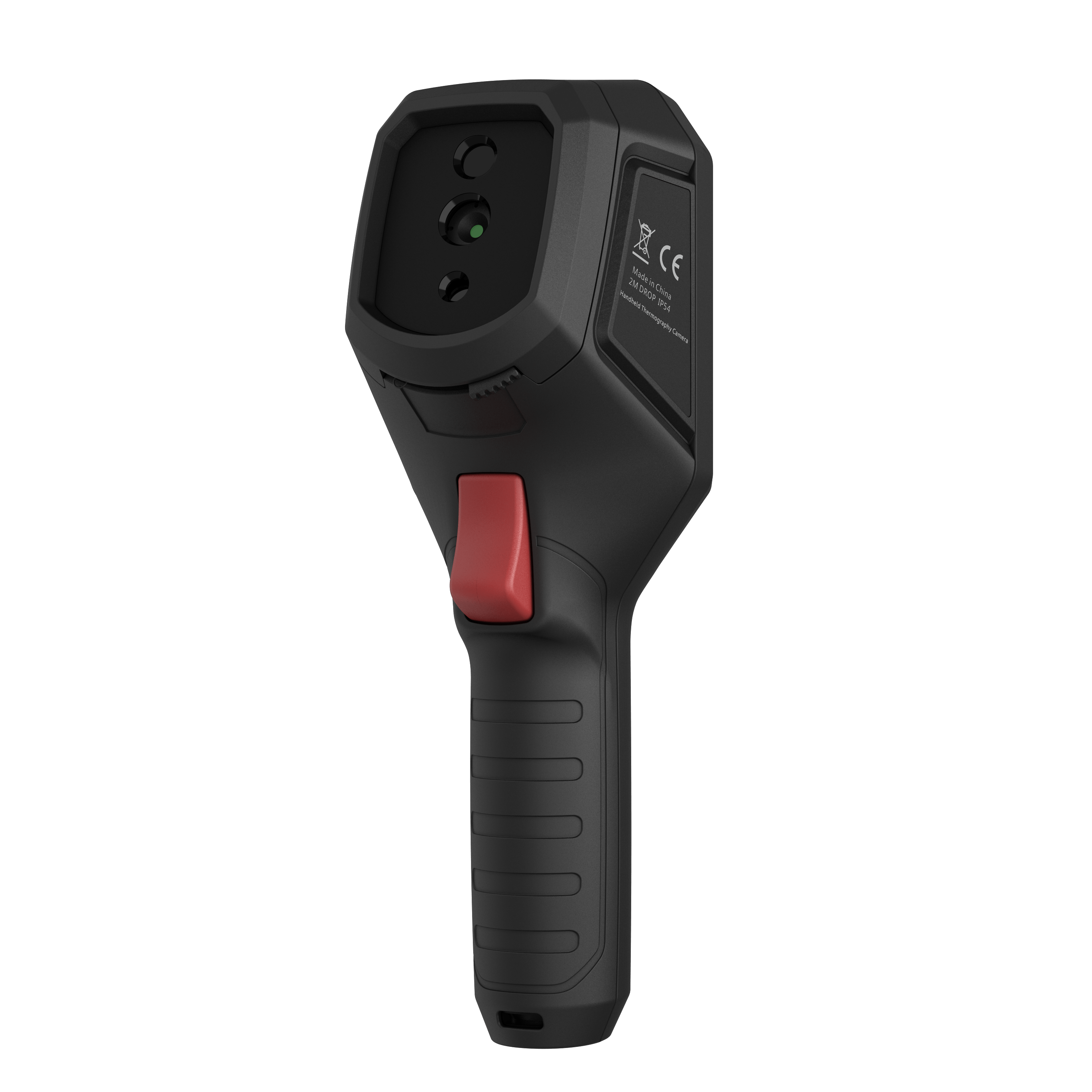

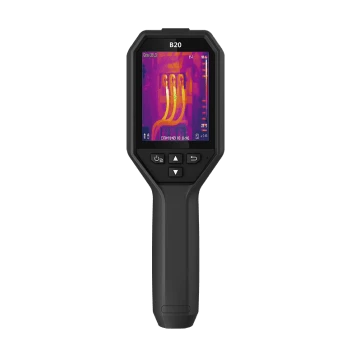

HIKMICRO B20

Product Code:

B20

Warranty Period:

Contact us

Infrared Image

IR Resolution

256 × 192 (49,152 pixels)

NETD (Thermal Sensitivity)

< 40 mK (@ 25 °C, F#=1.0)

Image Scanning Speed

25 Hz

Pixel Pitch

12 mikron

Spectral Range

7,5 ila 14 μm

Focal Length

3,6 mm

F-number

F1.0

Field of View (FOV)

37,2° × 50,0°

Spatial Resolution (IFOV)

3.3 mrad

Focusing

Sabit

SuperIR

Yes, in captured thermal images

Min. Focal Length

0,3 m (0,98 ft)

Screen

Visual Camera

1600 × 1200 (2 MP)

Screen

240 × 320 Resolution, 3.2” LCD Screen

Display Modes

Thermal/Visual/Fusion/PIP

Color Palettes

Thermal/Visual/Fusion/PIP

Color Alarm

above alarm

Measurement and Analysis

Object Temperature Range

-20°C to 550°C (-4°F to 1022°F)

Precision

Maximum (± 2°C/3.6°F, ± 2%) for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)

Measurement Tools

Center Point, Hot Point, Cold Point User definable: 3 points

Level and Scope Mode

Auto/Manual

Data Storage and Communication

Storage Media

Internal 16 GB flash memory

Image Storage Capacity

Approximately 90,000 Images
