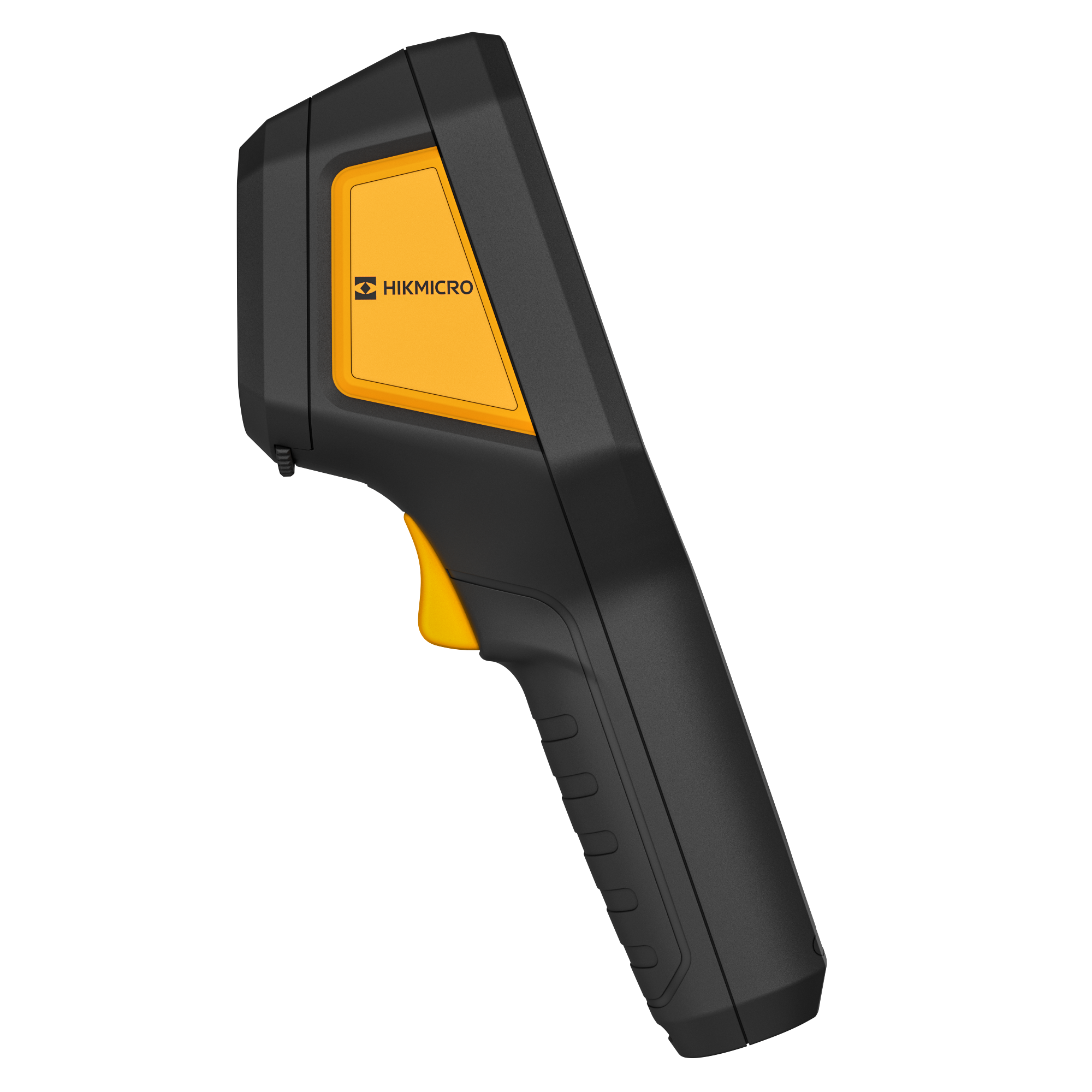

HIKMICRO BX20

Product Code:

BX20

Warranty Period:

Contact us

Infrared Image

IR Resolution

256 × 192 (49,152 pixels)

NETD (Thermal Sensitivity)

< 40 mK (@ 25 °C, F#=1.0)

Image Scanning Speed

25 Hz

Pixel Pitch

12 microns

Spectral Range

7,5 to 14 μm

Focal Length

3,6 mm

Aperture Range

F1.0

FOV (Field of View)

37,2° × 50,0°

Spatial Resolution (IFOV)

3.3 mrad

Focus

Freedom to Focus

Minimum Focus Distance

0,3 m (0,98 ft)

SuperIR

Yes, in the thermal images captured

Screen

Visual Camera

1600 × 1200 (2 MP)

Screen

240 × 320 Resolution, 3.2” LCD Screen

Display Modes

Thermal/Visual/Fusion/PIP

Color Palettes

Basic, Black Hot, White Hot, Fire Detection, Rescue, Hot Area, Cold Area, Building

Color Alarm

Above alarm

Measurement and Analysis

Object Temperature Range

Range -20°C to 150°C (-4°F to 302°F) , Range 100℃ to 550℃ (212°F to 1022°F)

Sharpness

Maximum (± 2°C/3.6°F, ± 2%) for ambient temperature of 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)

Measurement Tools

Center Point, Hot Point, Cold Point User definable: 3 points

Level and Scope Mode

Automatic/Manual

Data Storage and Communication

Image Storage

Internal 16 GB flash memory

Image Storage Capacity

Approximately 90,000 Views

FEATURES

EXPLANATION

USB Interface

USB Tip-C

Battery Type

Rechargeable Li-ion battery

Battery Runtime

Approximately 6 hours

Battery Charging Time

Approximately 3 hours full charge

Protection Level

IP65

Drop Test Height

2 m (6,56 ft)

Operating Temperature Range

-20°C to 50°C (-4°F to 122°F)

Storage Temperature Range

-20°C to 60°C (-4°F to 140°F)

Relative humidity

< 95% non-condensing

Weight

Approximately 380g (0.84lb)

Dimension

221,7 × 73,5 × 123,8 mm (8,73 × 2,89 × 4,87 inç)

Tripod Mounting

ÇK ¼”-20

LED Light

Yes

ATEX / IECEx Certificate Type

ATEX: II 3 G Ex ic IIC T6 Gc, II 3 D Ex ic IIIC T85°C Dc IECEx: Ex ic IIC T6 Gc, Ex ic IIIC T85°C Dc
