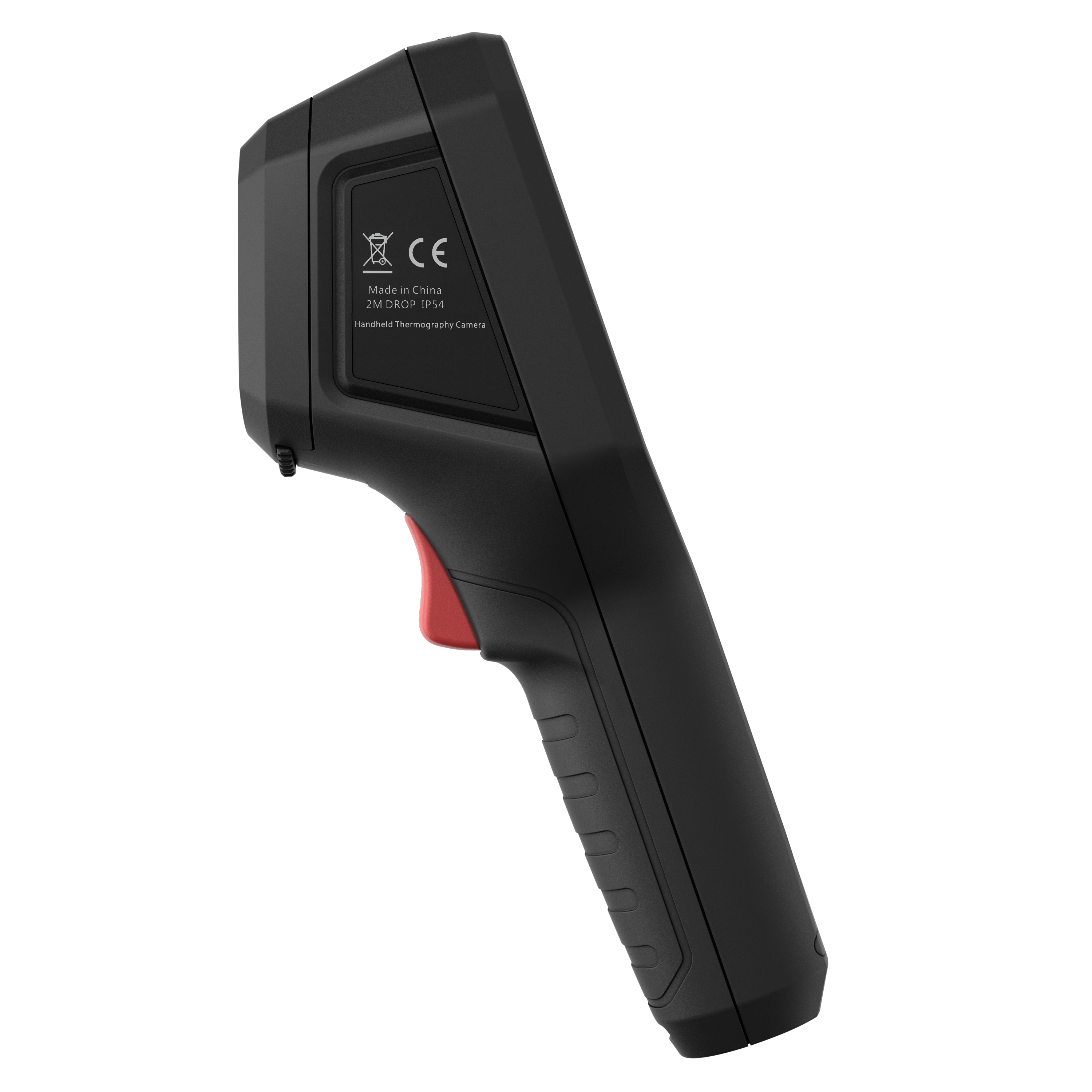

HIKMICRO B1L

Product Code:

B1L

Warranty Period:

Contact us

INFRARED MODULE

Infrared Resolution

160 x 120 (19,200 pixels)

NETD (Thermal Sensitivity)

< 40 mK (@25°C)

Image Scanning Speed

25 Hz

Pixel Pitch

17 μm

Spectral Range

7.5 - 14 μm

Focal Length

3.5 mm

FOV (Görüş Açısı)

32.9° x 44.4° (H x V)

FOV (Field of View)

4.85 mrad

Minimum Focusing Distance

0.3 m

Focusing

Fixed

Aperture Range

F1.1

SCREEN

Visual Camera

N/A

Screen

240 x 320 Resolution, 2.4’ LCD Display

Colour Alarm

High Alarm

Colour Palettes

White Hot, Black Hot, Rainbow, Iron

Image Modes

N/A

MEASUREMENT AND ANALYSIS

Temperature Range

-20°C to +550°C

Deviation

± 2°C

Measurement Tools

Centre Point, Auto Hot Point, Auto Cold Point, User Defined: 3 Points

Level and Range

Automatic / Manual

DATA STORAGE AND COMMUNICATION

Image Storage

Internal 4GB

Image Storage Capacity

Approximately 30,000 images

GENERAL

Wi-Fi

802.11 b/g/n (2.4 GHz)

USB Interface

USB Interface USB Type-C

LED

Yes

Battery

Rechargeable Li-Ion Battery

Battery Operating Time

About 8 hours

Battery Charging Time

Approx. 3 Hours (Full Charge)

Protection Classvv

IP54

Drop Resistance

2 m.

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 60°C

Relative Humidity

< 95% Non-condensing

Weight

Approximately 360 g.

Dimensions

221.7 mm x 73.5 mm x 123.8 mm

Tripod

UNC ¼”-20
