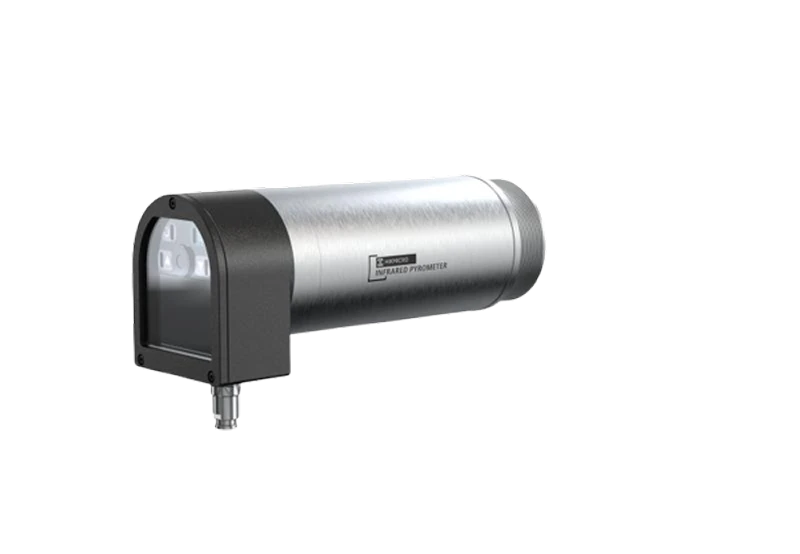

HIKMICRO PD121

Product Code:

PD121

Warranty Period:

5 Years

Contact us

Measurement Features

Spectral Response

0,8 μm ~ 1,08 μm

Temperature Range

500℃~1800℃(932°F~3272°F)

Precision

±(0.3%*Tmea+1)℃ or ±(0.3%*Tmea+1.8)°F, Tmea means "Current measured temperature"

Resolution

0,1℃/0,18°F

Repeatability

±(0.1%*Tmea+1)℃ or ±(0.1%*Tmea+1.8)°F, Tmea means "Current measured temperature"

Optical Resolution (D:S)

100:1 (90% of energy)

Point Size

6mm

Response Time

1ms

Slope

0,850～1,150

Emissivity

0,100～1,100

Viewing

Laser, visual display, lens

Signal Processing

Average mode, temperature filter mode, peak/valley hold mode

Focus Range

0,6m~INF

Visual

Field of View (FOV)

11° x 8°

Optical Resolution

2688*1944

Data Communication

Analog Output

Supports proportional output, 16-bit resolution, maximum load 600Ω - Interface: 4-20mA - Output Types: 4-20mA/0-20mA/0-5V/0-10V

Digital Output

RS485, Modbus RTU, Modbus TCP

Alarm Output

Support relay control, dual control methods - COM output: Optocoupler isolation, delay time less than 2ms - PNP output: DC24V

Protocols

TCP/IP
