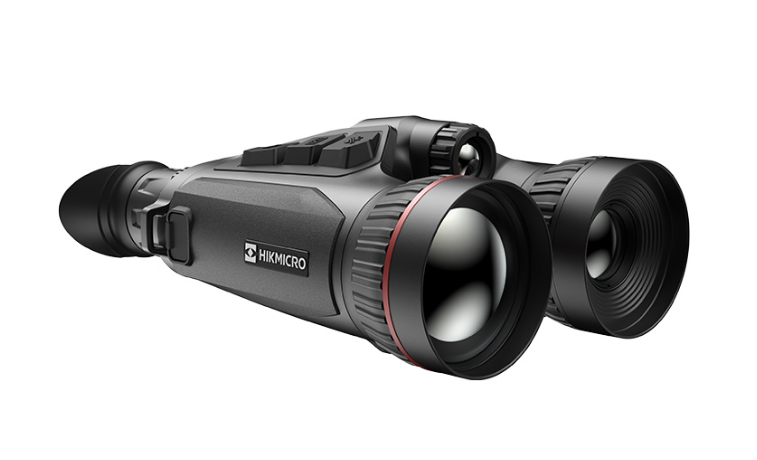

HIKMICRO HABROK Pro HQ50

Product Code:

HABROK Pro HQ50

Warranty Period:

Ürünün tamamı için 3 yıl, dedektör için 10 yıl, pil için 2 yıl garantilidir.

Contact us

Kızılötesi Görüntü

IR Çözünürlüğü

640 × 512 (327.680 piksel)

NETD (Termal Hassasiyet)

< 15 mK (@ 25 °C, F#=1.0

Görüntü Tarama Hızı

50 Hz

Piksel Aralığı

12 μm

Spektral Aralık

8 - 14 μm

Odak Uzaklığı

50 mm

F-Sayısı

F1.0

FOV (Görüş Açısı)

8.8° × 5.3°/15.4 m × 9.3 m

Odak Modu

Odak Halkası

Min. Odak Uzaklığı

5 m

Algılama Aralığı

2600 m

Optik Modül

Görüntü Sensörü

1/1.8'' Progressive Scan CMOS

Maksimum Çözünürlük

3840 × 2160

Odak Uzaklığı

60 mm, F2.2

Minimum Çalışma Mesafesi

3 m

Odaklama Modu

Odak Halkası

Büyütme

5.5× to 22.0× (4× )

Görüş Açısı (Yatay × Dikey), 100 m'de metre cinsinden

7.3° × 4.1° / 12.6 m × 7.2 m

Akıllı IR (Kızılötesi)

Var

IR Dalga Boyu

850 nm / 940 nm

Gece Görüş Mesafesi

400 m / 350 m

Ekran

Ekran

0.49 inch, OLED, 1920 × 1080

Paletler

Termal: Siyah Sıcak, Beyaz Sıcak, Kırmızı Sıcak, Füzyon Optik: Gündüz, Gece, Otomatik

FFC (Düz Alan Düzeltme) Modu

Otomatik, Manuel, Harici Düzeltme

Çıkış Göz Bebeği

8 mm

Göz Mesafesi

15 mm

Diyoptri (Aralık)

-5 D ile +3 D arası

Zoom Pro

Var
