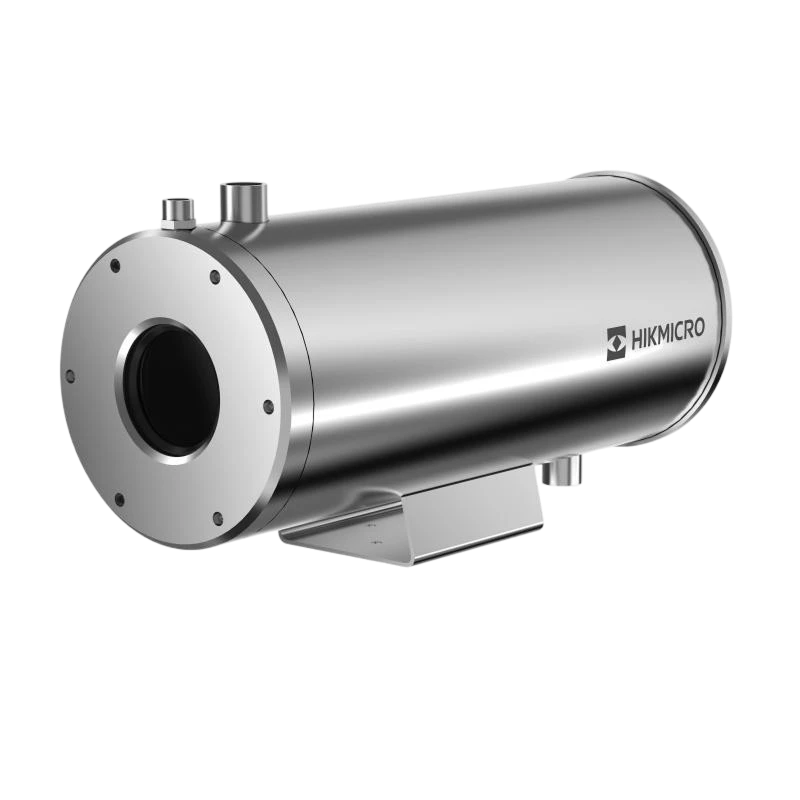

HIKMICRO HM-TD2H67H1-25/S

Product Code:

HM-TD2H67H1-25/S

Warranty Period:

Thermal Module

Image Sensor

Vanadium Oxide Uncooled Focal Plane Arrays

Pixel Pitch

17 μm

Thermal Sensitivity (NETD)

≤ 35 mK (@25° C,F# = 1,0)

Focus Mode

Semi-automatic and manual

Spatial Resolution (IFOV)

0,68 mrad

Field of View

24,8° × 19,9° (Y × D)

Min. Focus Distance

0.5 meters

Aperture Range

F1.5

Digital Zoom

1×, 2×, 4×, 8×

Spectral Range

8 μm to 14 μm

Focal Length

25 mm

Resolution

640x512

Measurement and Analysis

Object Temperature Range

0°C ila 1800 °C (32 °F ila 3272 °F)

Measurement Presets

Real-time hot spot, cold spot

Point

10 User Presets

Liner

1 User Presets

Area

10 User Presets

Color Alarm (Isotherm)

Above/Between/Below

Temperature Accuracy

Object temperature ±2% for ambient temperature of 100°C to 1800°C (212°F to 3272°F), 18°C to 25°C (64.4°F to 77°F), and ±3% for ambient temperature of 25°C to 50°C (64.4°F to 77°F)

Thermographic Integration

Temperature Metadata

Continuous output data of preset thermographic rules and measured temperature

Thermographic Data Coding

4 fps, 32 bit 640 × 512 per frame

Thermographic Data Upload

Real-time full-screen thermographic data matrix (16-bit or 32-bit 640×512) via RTSP, ISAPI and SDK

Raw Data Loading

Real-time full-screen YUV data via RTSP and SDK

Video and Image

Mainstream

50 frames per second (640 × 512)

Video Compression

H.265/H.264/MJPEG

Color Palettes

15 options: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Iron Spring 1, Iron Spring 2, Speia, Color 1, Color 2, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue

Network

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP

API

MODBUS, ISAPI, Network SDK, Open Network Video Interface (Profile S, Profile G)

Simultaneous Live View

Up to 20 channels

User/Host level

Up to 32 users, 3 levels: Administrator, Operator, User

Security

User authentication (ID and PW), HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering

Customer

HIKMICRO Studio

İnterface

Communication Interface

1, RJ45 10M/100M/1000M self-adaptive Ethernet interface 1, RS-485 interface (ModBus is available)

Alarm Input

1, alarm input (0-3.3 VDC)

Alarm Output

1, alarm output; NC, level amount

Alarm Action

Preset/patrol scan/alarm recording/relay output/smart capture/FTP upload/email linkage

Analog Output

1, CVBS output

High Temperature Resistance

Coolant

(Application example with incoming water at 20°C (68°F)): Ambient Temperature 80°C (176°F), Flow Rate over 0.65 L/min ； Ambient Temperature 100°C (212°F), Flow Rate over 1.22 L/min ； Ambient Temperature 150°C (302°F), Flow Rate over 1.76 L/min

Cooling Air

(Application example with incoming air at 20 °C (68 °F) and 7 bar pressure): Ambient Temperature 70 °C (158 °F), Flow Rate over 15.34 m³/h ； Ambient Temperature 85 °C (185 °F), Flow Rate over 32.54 m³/h ； Ambient Temperature 100 °C (212 °F), Flow Rate
