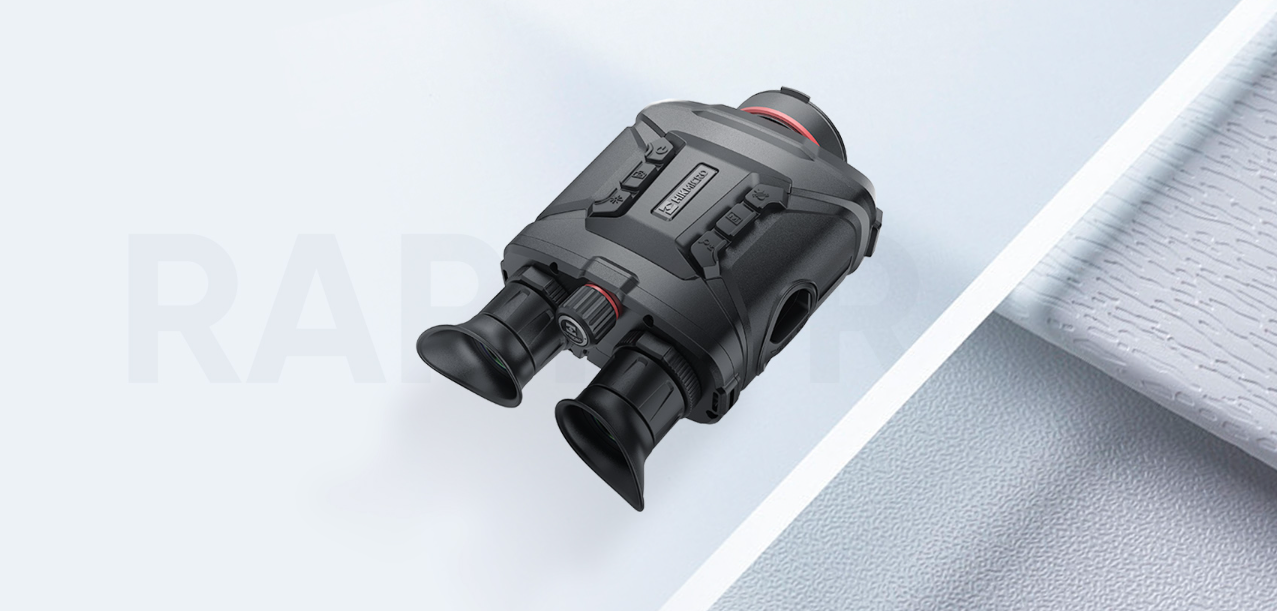

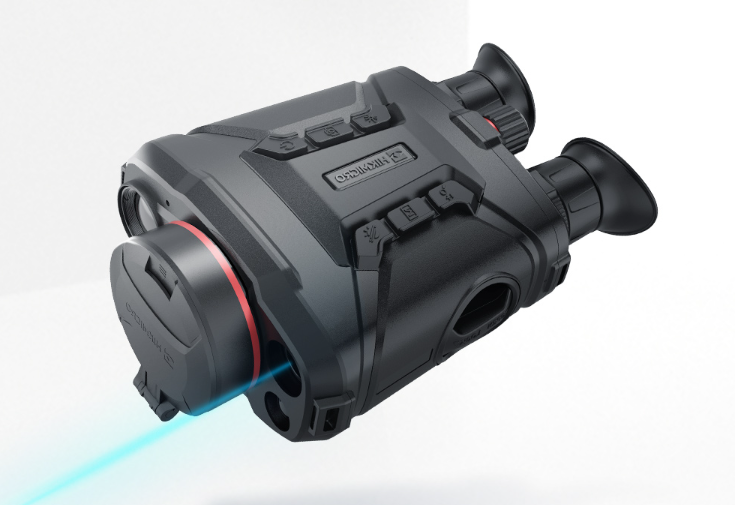

HIKMICRO RAPTOR RH50

Product Code:

RAPTOR RH50

Warranty Period:

Ürünün tamamı için 3 yıl, dedektör için 10 yıl, pil için 2 yıl garantilidir.

Contact us

Kızılötesi Görüntü

IR Çözünürlüğü

384 × 288 (110.592 piksel)

NETD (Termal Hassasiyet)

< 20 mK (@ 25 °C, F#=1.0

Görüntü Tarama Hızı

25 Hz

Piksel Aralığı

12 μm

Spektral Aralık

8 - 14 μm

Odak Uzaklığı

50 mm

F-Sayısı

F0.9

FOV (Görüş Açısı)

5.3° × 4.0°/ 9.3 m × 7.0 m

Odak Modu

Odak Halkası

Min. Odak Uzaklığı

5 m

Algılama Aralığı

2600 m

Optik Modül

Görüntü Sensörü

1/1.88'' Progressif Tarama CMOS

Maksimum Çözünürlük

2560 × 1440

Odak Uzaklığı

31 mm, F1.2

Minimum Çalışma Mesafesi

3 m

Minimum Aydınlatma

0.001 lux @ (F1.0, AGC Açık)

Odaklama Modu

Odak Halkası

Büyütme

2.9× ila 23.2× (8×)

IR Dalga Boyu

850 nm / 940 nm

Akıllı IR (Kızılötesi)

Var

Gece Görüş Mesafesi

400 m / 350 m
