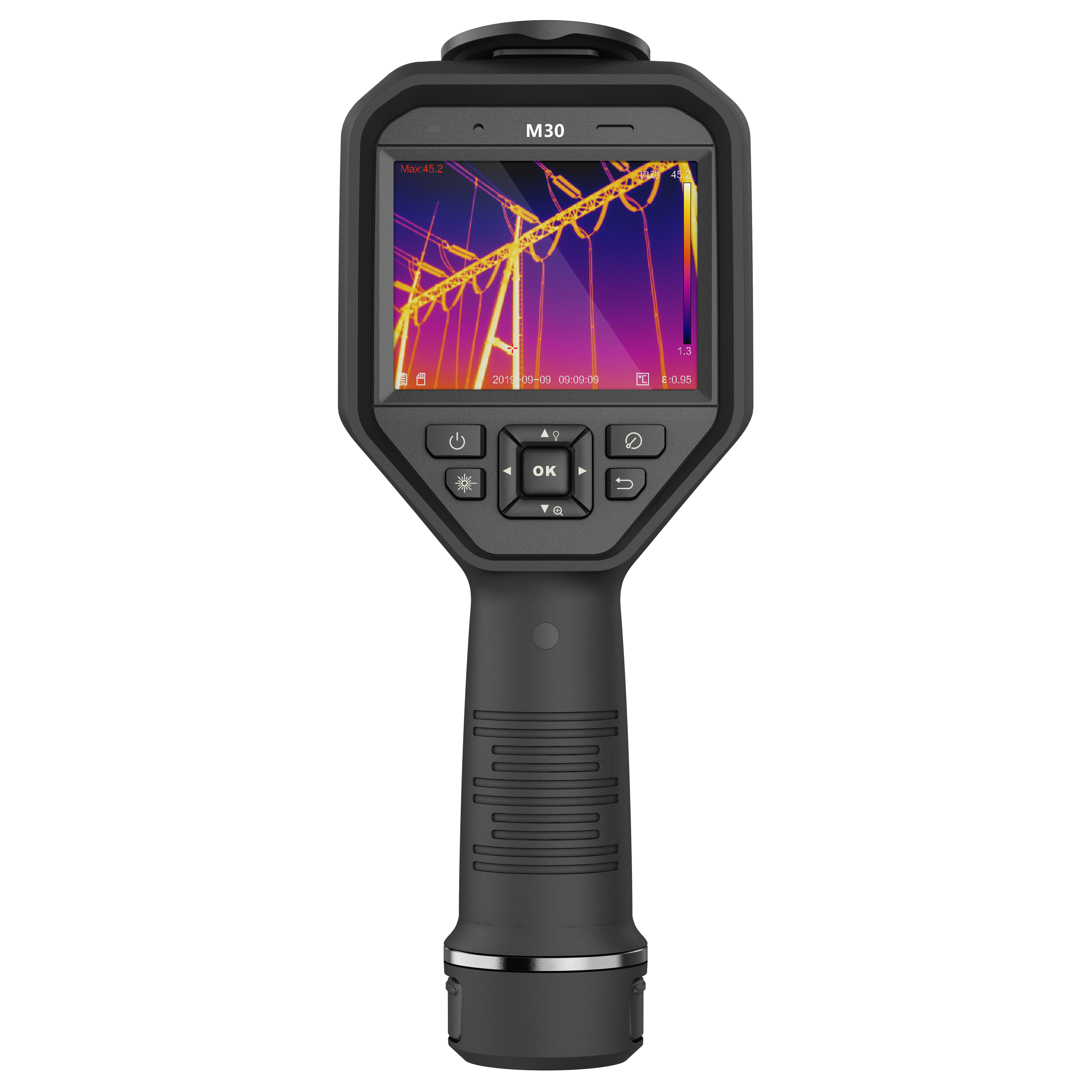

HIKMICRO M30

Product Code:

M30

Warranty Period:

There is a 3-year warranty for the entire product, 10 years for the detector and 2 years for the battery.

Contact us

Infrared Image

IR Resolution

384 x 288 (110.592 piksel)

NETD (Thermal Sensitivity)

< 35 mK (@ 25 °C, F#=1.0)

Image Scanning Speed

30 Hz

Pixel Pitch

17 mikron

Spectral Range

7,5 ila 14 μm

Focal Length

9,7 mm

F-number

F1.0

Field of View (FOV)

37,5° × 28,5°

Spatial Resolution (IFOV)

1.75 mrad

Focus Mode

Manual Focus

SuperIR

768 x 576 (442.368 piksel)

Min. Focal Length

0,2 m (0,65 fit)

Screen

Visual Camera

3264 × 2448 (8 MP)

Screen

640 × 480 Resolution, 3.5" LCD Touch Screen

Screen Brightness

Manuel

Digital Zoom

1.0x to 8.0x continuous

Display Modes

Thermal/Visual/Fusion/PIP/Blending

Color Palettes

White Hot, Black Hot, Rainbow, Iron Spring, Red Hot, Fusion, Rain, Blue Red

Focus Mode Palette

Over/Under/Range

Color Alarm

Top/Bottom/Gap/Insulation

Measurement and Analysis

Object Temperature Range

-20 °C to 550 °C (-4 °F to 1022 °F)

Precision

Maximum (±2°C/3.6°F, ±2%) when ambient temperature is 15°C to 35°C (59°F to 95°F) and object temperature is above 0°C (32°F)

Measurement Tools

Center Point, Hot Point, Cold Point User definable: 10 points, 1 line, 5 rectangles and 5 circles

Level and Scope Mode

Auto/Manual/1-Touch Screen

Data Storage and Communication

Storage Media

Removable 64 GB Micro SD Card

Image Storage Capacity

Approximately 100,000 Images

Remarks

Voice memo: up to 60 seconds; Text note: up to 200 characters

Video Storage Capacity

Approximately 300 hours

Video File Format

MP4 video and radiometric video

Radiometric Infrared Video Stream (Compressed)

Over UVC

FEATURES

EXPLANATION

Wifi

802.11 b/g/n (2,4 GHz ve 5 GHz)

Bluetooth

Bluetooth 4.2

USB Interface

USB Tip-C

Battery Type

Replaceable and rechargeable Li-ion battery

Battery Working Time

About 4 hours

Battery Charging Time

Approximately 4 hours full charge

Power Saving Mode

Yes

Protection Level

IP54

Drop Test Height

2 m (6,56 ft)

Safety

IEC 61010-1

EMC

EN 50130-4, EN 55032, EN IEC 61000-3-2, EN 61000-3-3

Vibration

1 gr, IEC 60068-2-6

Shock

15 gr, IEC 60068-2-27

Operating Temperature Range

-10°C to 50°C (-4°F to 122°F)

Storage Temperature Range

-20°C to 60°C (-4°F to 140°F)

Relative humidity

< 95% non-condensing

Weight

Approx. 660g (1.46lb)

Size

244 × 100 × 104 mm (9,6 × 3,9 × 4,1 inç)

Tripod Mount

ÇK ¼”-20

Guarantee

There is a 3-year warranty for the entire product, 10 years for the detector and 2 years for the battery.

LED Light

Yes

Laser

Yes, Class II, Wavelength: 650 nm; Power: < 1mW
