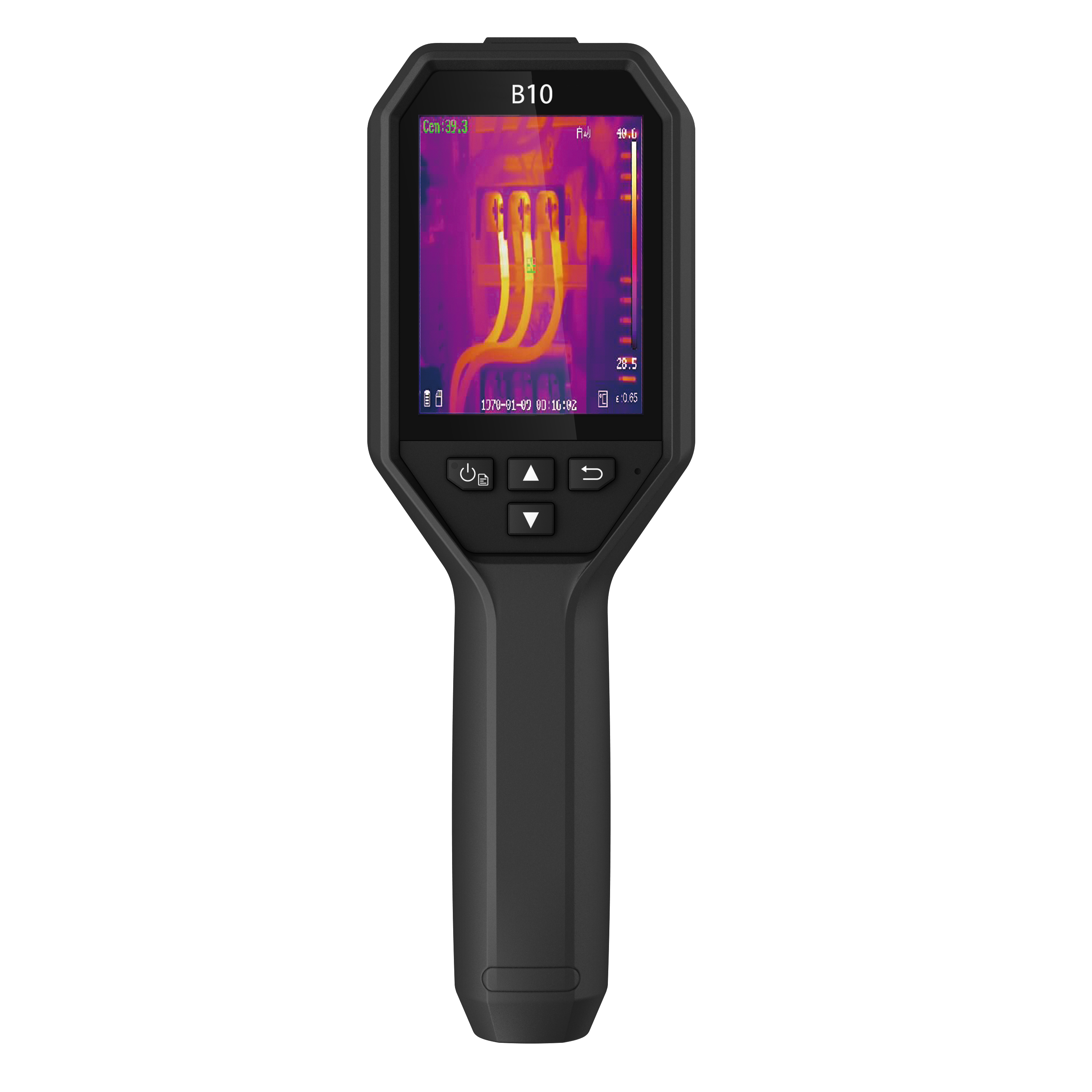

HIKMICRO B10

Product Code:

B10

Warranty Period:

Contact us

INFRARED MODULE

Infrared Resolution

256 x 192 (49,152 pixels)

NETD (Thermal Sensitivity)

< 40 mK (@25°C)

Image Scanning Speed

25 Hz

Pixel Pitch

12 μm

Spectral Range

7.5 - 14 μm

Focal Length

3.6 mm

FOV (Field of View)

37.2° x 50° (H x V)

Spatial Resolution (IFOV)

3.3 mrad

Minimum Focusing Distance

0.3 m

Focusing

Fixed

Aperture Range

F1.1

SCREEN

Visual Camera

1600 x 1200 (2 MB)

Ekran

240 x 320 Resolution, 3.2’ LCD Display

Renk Alarmı

High Alarm

Colour Palettes

White Hot, Black Hot, Rainbow, Iron

Image Modes

Thermal / Visual / Fusion / PIP

MEASUREMENT AND ANALYSIS

Temperature Range

-20°C to +550°C

Deviation

± 2°C

Measurement Tools

Centre Point, Auto Hot Point, Auto Cold Point, User Defined: 3 Points

Level and Range

Automatic / Manual

DATA STORAGE AND COMMUNICATION

Image Storage

External 16GB Micro SD Card

Image Storage Capacity

Approximately 90,000 images

GENERAL

Wi-Fi

N/A

USB Interface

USB Type-C

LED

Yes

Battery

Rechargeable Li-Ion Battery

Battery Operating Time

About 6 hours

Battery Charging Time

Approx. 3 Hours (Full Charge)

Protection Class

IP54

Drop Resistance

2 m.

Operating Temperature

Operating Temperature

Storage Temperature

-20°C to 60°C

Relative Humidity

< 95% Non-condensing

Weight

Approximately 380 g.

Dimensions

Dimensions

Tripod

UNC ¼”-20
