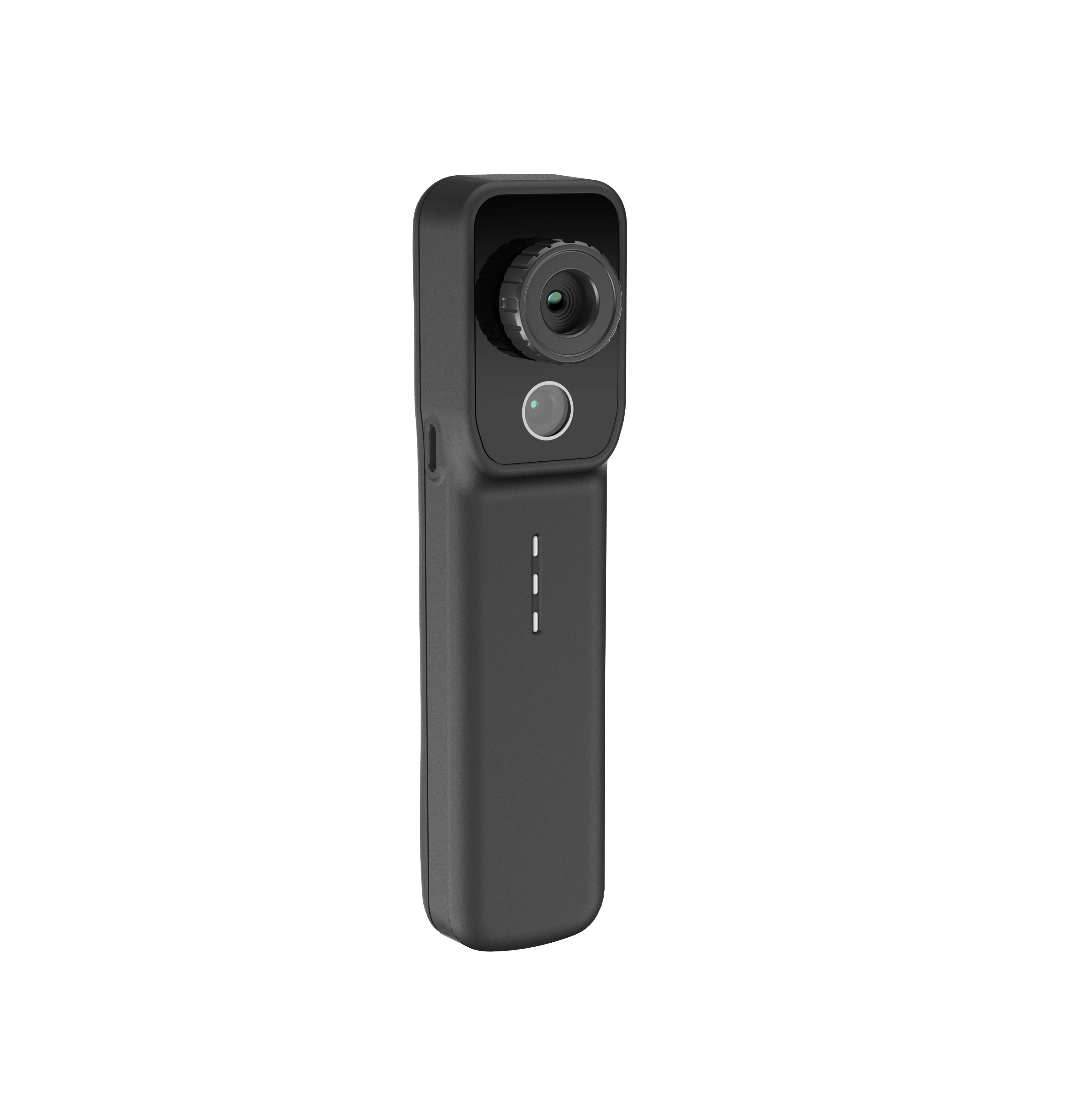

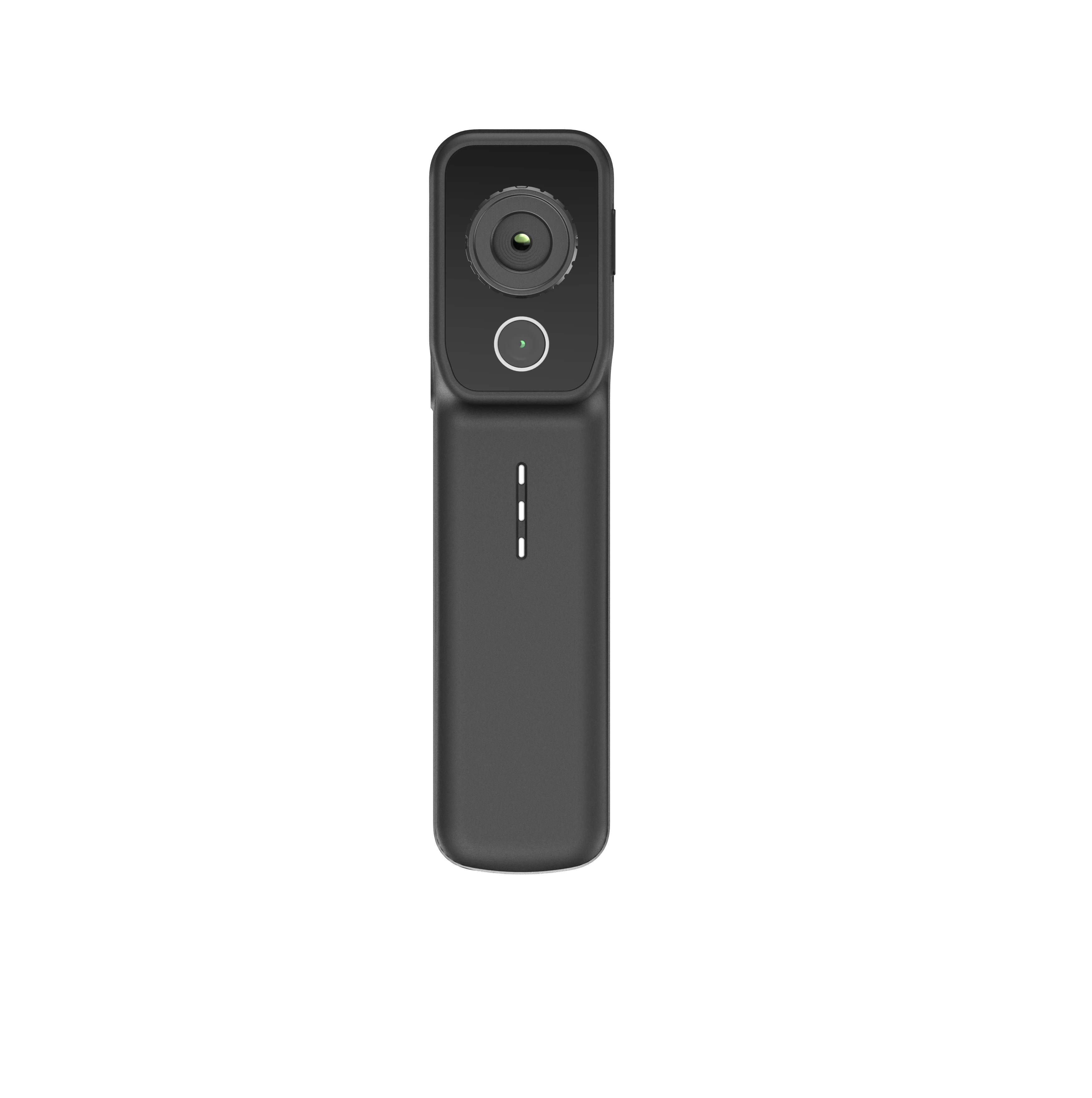

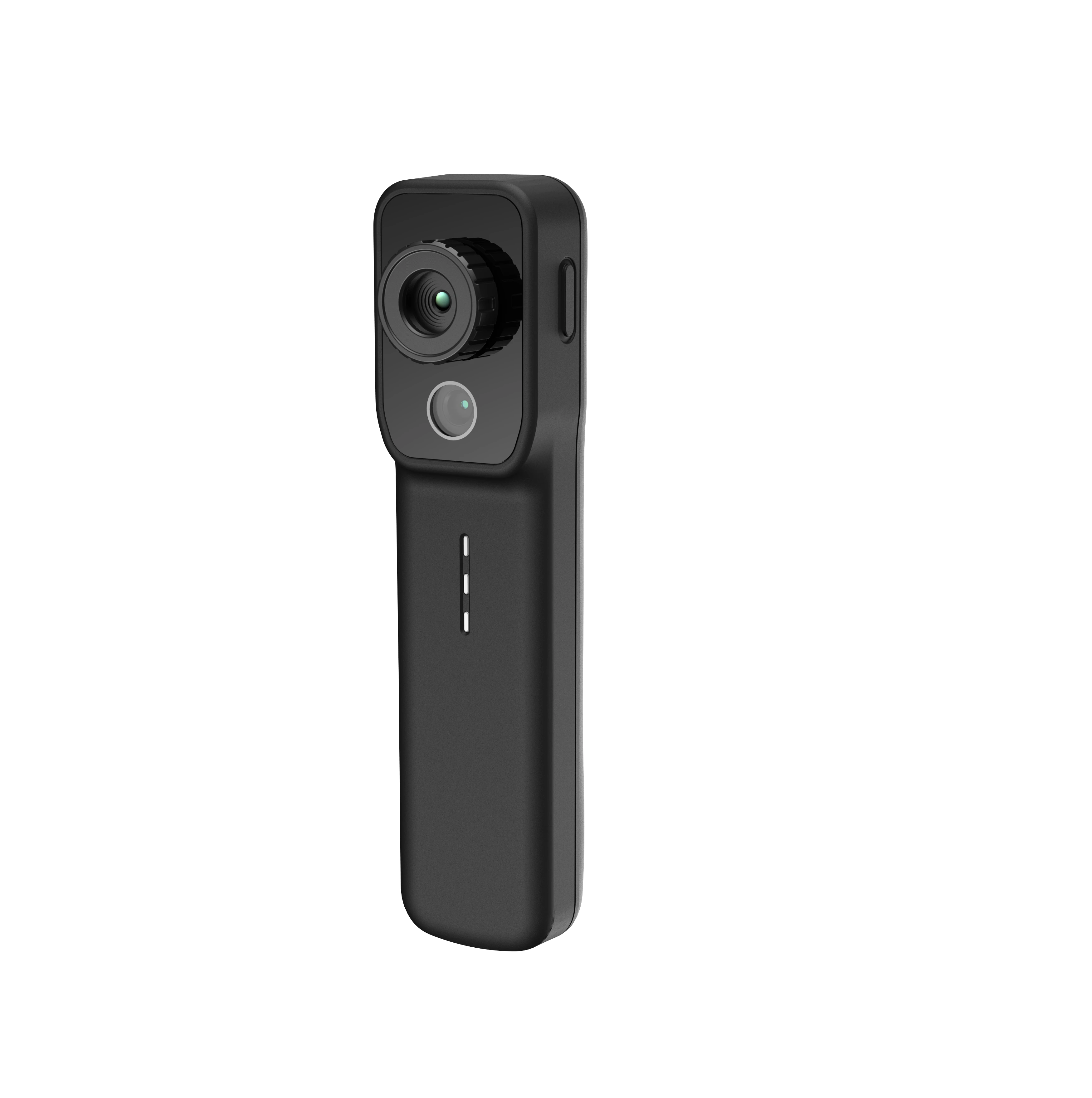

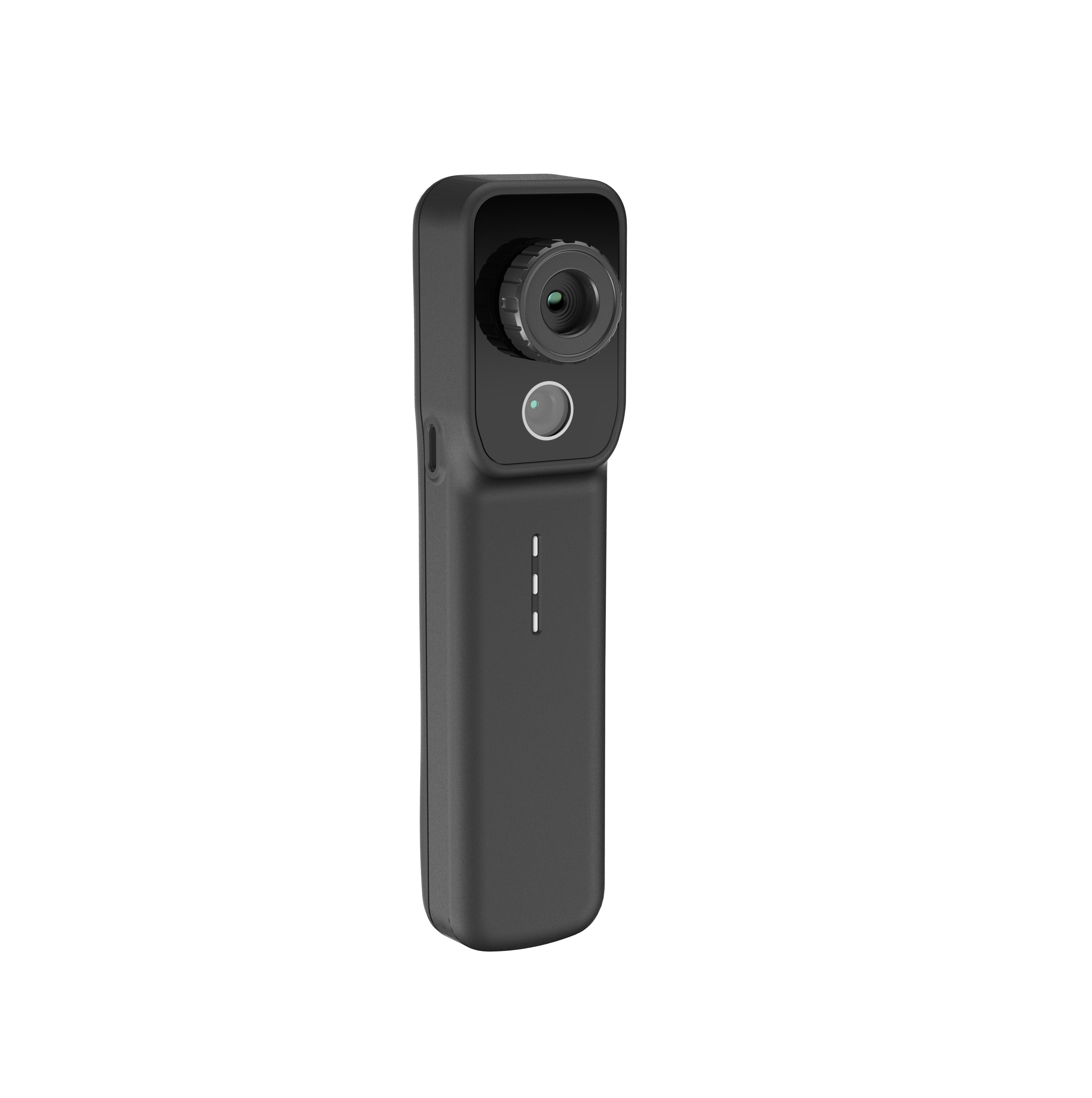

HIKMICRO Mini-X

Product Code:

Mini-X

Warranty Period:

Contact us

Infrared Image

IR Resolution

256 × 192 (49.152 piksel)

NETD (Thermal Sensitivity)

< 40 mK (@ 25 °C, F#=1.0)

Image Frequency

25 Hz

Detector Curtain

12 mikron

Spectral Range

7,5 ila 14 μm

Focal Length

3,6 mm

F-number

F1.0

Field of View (FOV)

37,2° × 50,0°

Spatial Resolution (IFOV)

3.33 mrad

Focus Mode

Manual Focus

Min. Focal Length

0,05 m (0,164 ft)

SuperIR

Yeah, I've got a visual on the captured footage and the live feed.

Image Display

Visual Camera

640×480 (0.3 MP)

Image Modes

Thermal/Visual/Fusion/PIP/Blend

Colour Palettes

White Hot, Black Hot, Rainbow, Iron Spring, Red Hot, Fusion, Rain, Blue Red

Measurement and Analysis

Object Temperature Range

Range -20℃ to 120℃（-4°F to 248°F) Range 100℃ to 550℃（212°F to 1022°F）

Certainty

Maximum (±2°C/3.6°F, ±2%) when ambient temperature is 15°C to 35°C (59°F to 95°F) and object temperature is above 0°C (32°F)

Measurement Tools

Centre Point, Hot Point, Cold Point can be defined by the user: 3 points, 3 rectangles and 1 line

Level and Scope Mode

Automatic/Manual

Data Storage and Communication

Video File Format

MP4 video (25 Hz) recorded in the HIKMICRO Viewer App

Image File Format

Radiometric JPEG saved in the HIKMICRO Viewer App

Radiometric Infrared Video Stream (Compressed)

UVC (5Hz) Üzerinde

FEATURES

EXPLANATION

Wifi

802.11 b/g/n (2.4 GHz and 5 GHz)

USB Interface

USB Tip-C

Battery Type

Rechargeable Li-ion battery

Battery Operating Time

About 4 hours

Battery Charging Time

Supports fast charging. Charge up to 50% capacity in 30 minutes, 85% in 1 hour and 100% in 2 hours.

Power Saving Mode

Automatic Switch Off

Protection Level

IP54

Drop Test Height

1 m (3,28 ft)

Operating Temperature Range

-10°C to 50°C (-4°F to 122°F)

Storage Temperature Range

-20°C to 70°C (-4°F to 158°F)

Relative humidity

< 95% non-condensing

Weight

Approx. 158 g (0.35 lb)

Size

155,45 × 38,89 × 32,15 mm (6,12 × 1,53 × 1,27 in)

Power Supply

USB-C (5V/2A)

Battery Indicator

Yes, it shows battery level and charging status

Installation Method

By attaching it to your phone or tablet, you can use it with magnetic wall mount or tripod mount

Software Compatibility

HIKMICRO Viewer app for iOS and Android, HIKMICRO Analyzer software for Windows

Device Compatibility

iOS (version 14 and above), Android (version 9 and above) smartphones and tablets or Windows devices
