HIKMICRO AI56

Product Code:

AI56

Warranty Period:

3 Years

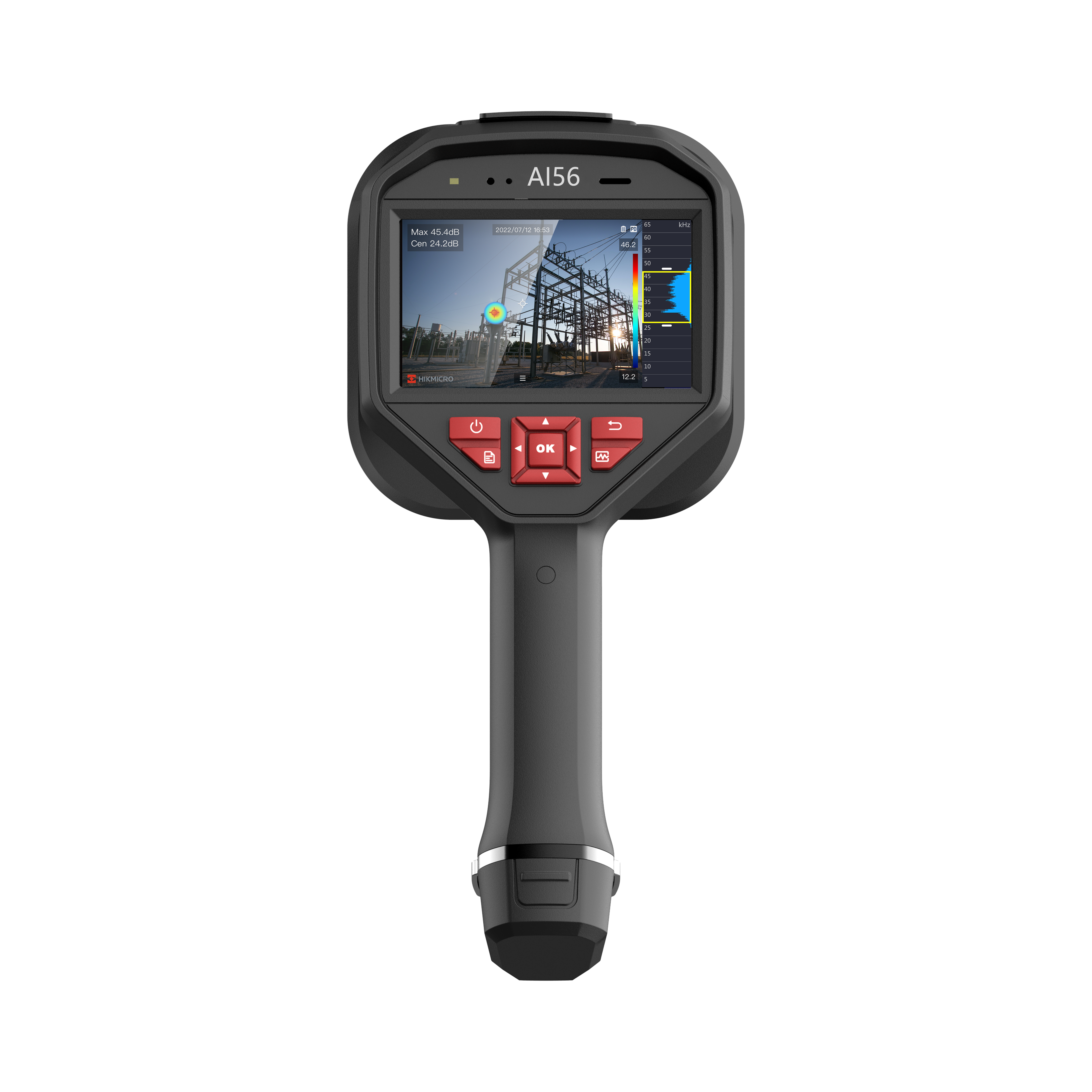

HIKMICRO AI56 acoustic imaging camera is a professional product for detecting sound source. With 64 Low-Noise MEMS microphones and adjustable bandwidth range from 0 kHz to 96 kHz, AI56 provides an easy and effective way to detect compressed air leaks in industrial environments or partial discharge in high-voltage systems. Using the large 4.3" LCD touch screen, the results are presented on a digital image, allowing you to quickly find the source of problems. The maximum working distance can reach 100 meters, which keeps you at a safe distance for inspection. By adopting this lightweight and easy-to-use tool, you can discover potential safety risks, minimize troubleshooting, and save extra costs caused by equipment failures and downtime.

Acoustic

Number of Microphones

Acoustic Image Resolution

800 × 480

Bandwidth

0 kHz to 96 kHz, adjustable range MEMS sampling frequency: 192 kHz

Distance

0,3m ~ 150m

Acoustic Image Color Palette

White Black, Black White, Rainbow, Fusion, Iron, Red Black, Rain, Blue Red

Leakage Rate

> 0.008 l/dk. @ 6 bar, 0.5 m.'den, > 0.013 l/dk. @ 5 bar, 1 m.'den

Camera Viewing Angle

50.2°× 35.4°

Sound Intensity Indicator

The Peak Point

Acoustic Image Frame Rate

25 frames per second

Dynamic Range

Low Limit: <-15dB , High Limit: >120dB

Discharge Detection

Auto detection 50 / 60 Hz

Discharge Type

Corona Discharge, Particle Discharge, Floating Discharge, Surface Discharge

Screen

Visual Camera

2688 x 1944 (5 MP)


800 × 480 Resolution, 4.3' LCD Touch Screen

Screen Brightness

Manual/Automatic

Digital Zoom

1.0x ila 16x

Data Storage and Communication

Image Storage

Removable 64GB SD Card

Image Storage Capacity

20,000 Views

Add Notes

Voice Note: Max. 60 seconds; Written Note: Max. 255 Characters

Video Storage Capacity

60 Hours

Video File Format

MP4

64 Low-Noise MEMS Microphones, Real-Time Sound Visualization

Supports multiple palettes

High-quality optical module with 5MP resolution

High-caliber 800×480 resolution 4.3” LCD touch screen

Supports 1.0x to 16x continuous digital zoom

FEATURES

EXPLANATION

Wifi

802.11 b/g/n (2,4 GHz ve 5 GHz)

Bluetooth

Bluetooth 4.1

USB Interface

USB Tip-C

HDMI Interface

HDMI-D

Battery Type

Replaceable and Rechargeable Li-ion Battery

Battery Runtime

Battery Working Time Approx. 3.5 hours x3 total 10.5 hours

5 hours for full charge

Drop Test Height

1,2 m (3,94 ft)

Safety

IEC 61010-1

EMC

EN 55032:2015,EN 50130-4,EN IEC 61000-3-2,EN 61000-3-3

Vibration

2g, IEC 60068-2-6

Shock

25 gr, IEC 60068-2-27

Operating Temperature Range

-20 °C ila 50 °C (-4 °F ila 122 °F)

Storage Temperature Range

-20 °C ila 60 °C (-4 °F ila 140 °F)

Relative humidity

<95% non-condensing

Weight

Approximately 940g (2.07lbs)

Dimension

292,2 × 127 × 110,7 mm (11,50 × 5,00 × 4,36 inç)

Montajı

ÇK ¼”-20

Power supply

5V DC/2A (USB charging)

Protection level

IP54
