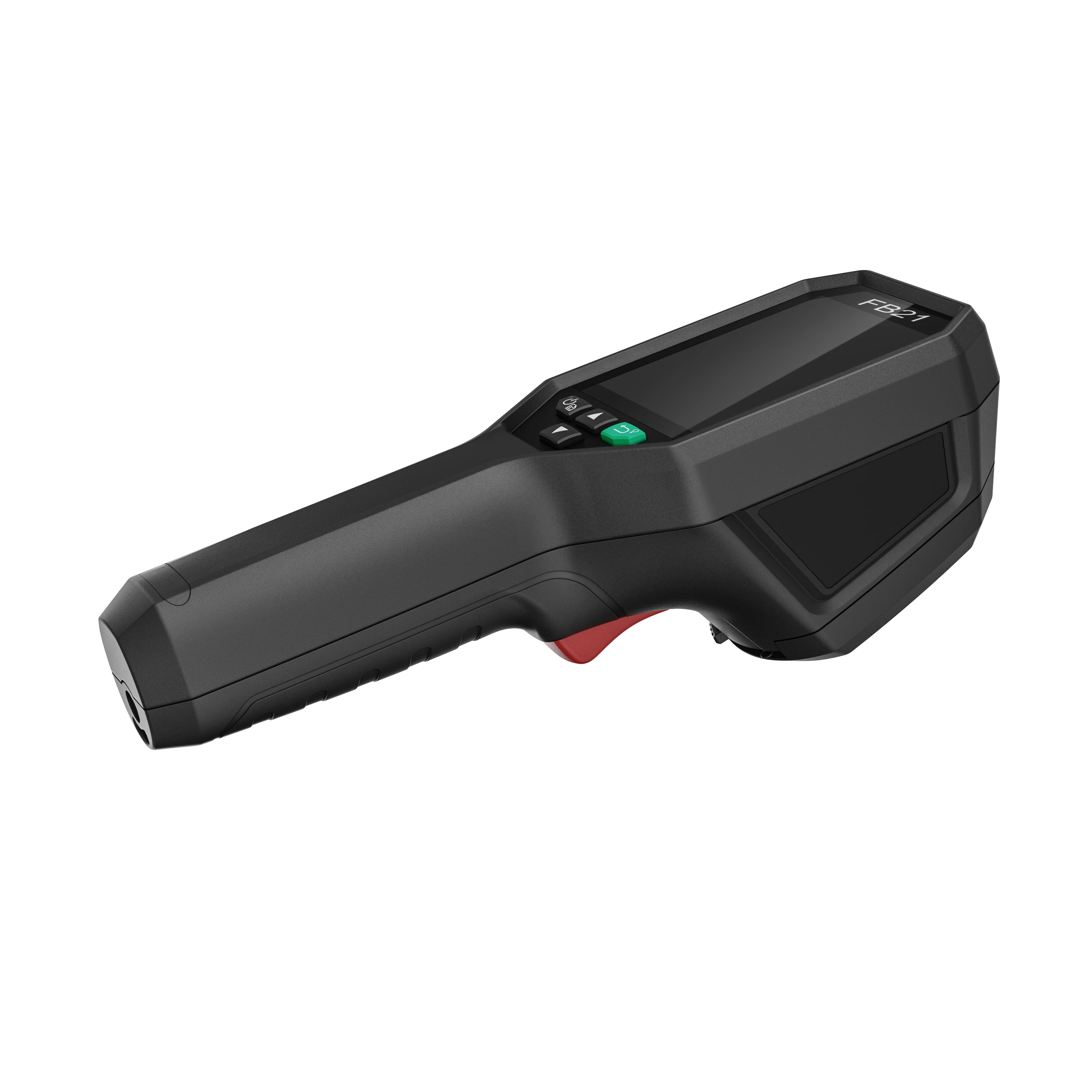

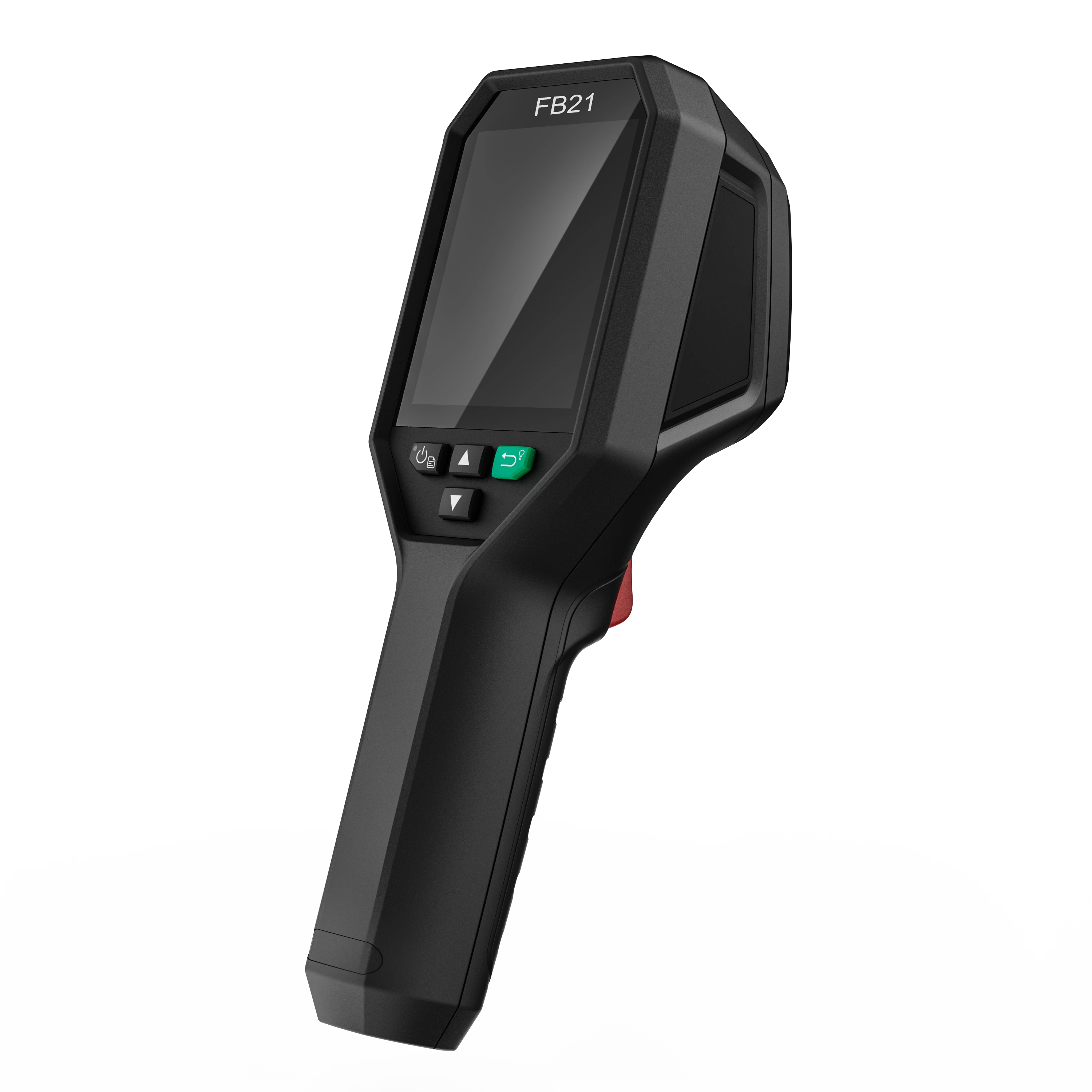

HIKMICRO FB21

Product Code:

FB21

Warranty Period:

Contact us

Infrared Image

IR Resolution

256 × 192 (49,152 pixels)

NETD (Thermal Sensitivity)

< 40 mK (@ 25 °C, F#=1.0)

Image Scanning Speed

25 Hz

Pixel Pitch

12 microns

Spectral Range

7,5 to 14 μm

Focal Length

3,6 mm

Aperture Range

F1.0

FOV (Field of View)

37,2° × 50,0°

Spatial Resolution (IFOV)

3.3 mrad

Focus

Freedom to Focus

Minimum Focus Distance

0,3 m (0,98 ft)

Screen

Visual Camera

1600 × 1200 (2 MP)

Screen

240 × 320 Resolution, 3.2” LCD Screen

Display Modes

Thermal/Visual/Fusion/PIP

Color Alarm

The above alarm

Color Palettes

Temel, Siyah Sıcak, Beyaz Sıcak, Yangın AlgılaaBasic, Black Hot, White Hot, Fire Detection, Rescue, Hot Area, Cold Area, Buildingma, Kurtarma, Sıcak Alan, Soğuk Alan, Bina

Measurement and Analysis

Object Temperature Range

Range -20°C to 150°C (-4°F to 302°F) , Range 100℃ to 550℃ (212°F to 1022°F)

Sharpness

Maximum (± 2°C/3.6°F, ± 2%) for ambient temperature of 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)

Measurement Tools

Center Point, Hot Point, Cold Point User definable: 3 points

Data Storage and Communication

Image Storage

Internal 16 GB flash memory

Image Storage Capacity

Approximately 90,000 Views
