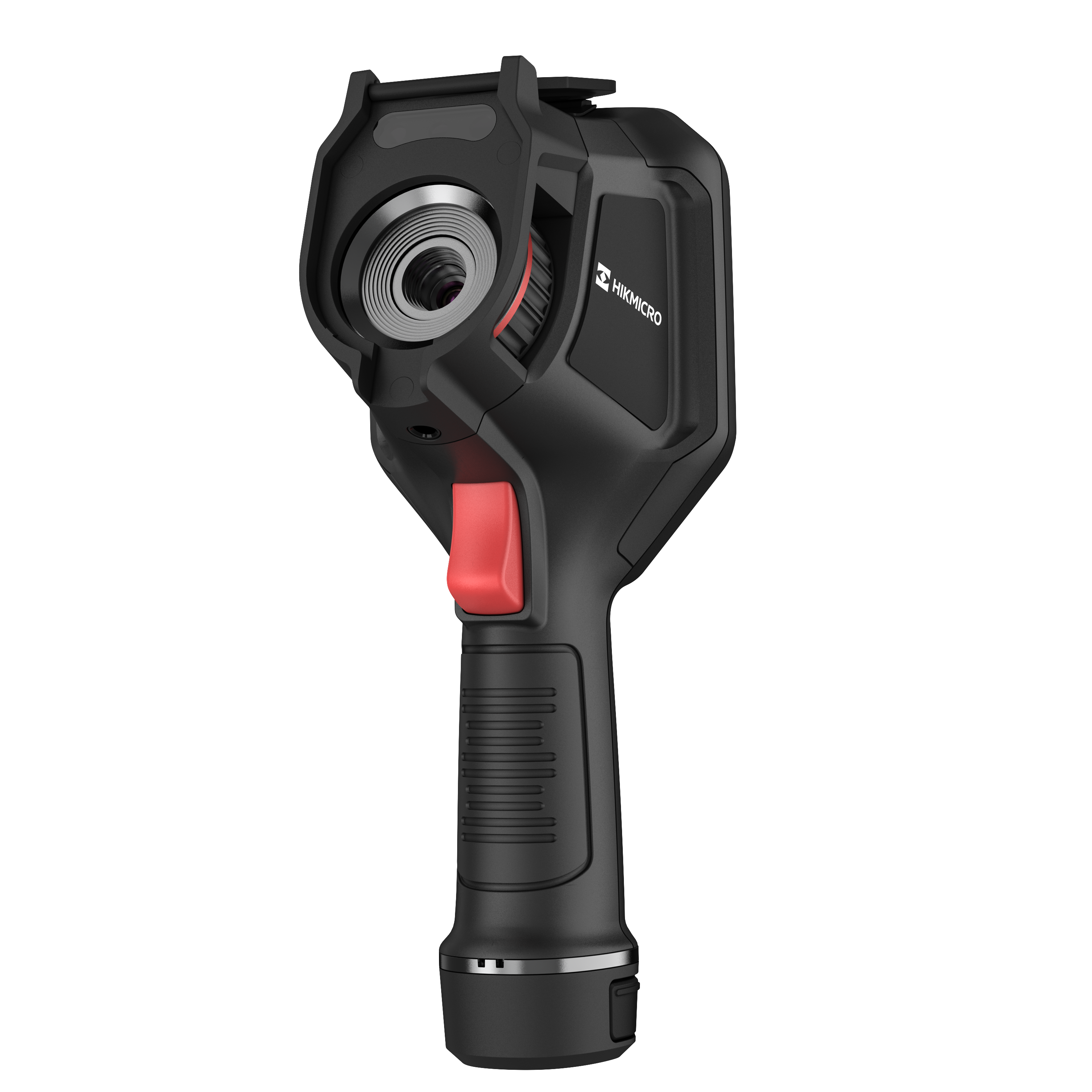

HIKMICRO M20

Product Code:

M20

Warranty Period:

Ürünün tamamı için 3 yıl, dedektör için 10 yıl, pil için 2 yıl garantilidir.

Contact us

Infrared Image

IR Resolution

256 × 192 (49.152 piksel)

NETD (Thermal Sensitivity)

< 40 mK (@ 25 °C, F#=1.0)

Image Scanning Speed

25 Hz

Pixel Pitch

12 mikron

Spectral Range

7,5 ila 14 μm

Focal Length

6,9 mm

F-number

F1.0

Field of View (FOV)

25° × 18,8°

Spatial Resolution (IFOV)

1.74 mrad

Focus Mode

Manuel Odaklama

SuperIR

512 × 384（196.608 piksel）

Min. Focal Length

0,1 m (0,33 ft)

Ekran

Visual Camera

3264 × 2448 (8 MP)

Screen

640 × 480 Resolution, 3.5" LCD Touch Screen

Screen Brightness

Manuel

Digital Zoom

1.0x to 8.0x continuous

Display Modes

Thermal/Visual/Fusion/PIP/Blending

Display Modes

Beyaz Sıcak, Siyah Sıcak, Gökkuşağı, Demir Yay, Kırmızı Sıcak, Füzyon, Yağmur, Mavi Kırmızı

Focus Mode Palette

Over/Under/Range

Color Alarm

Top/Bottom/Gap/Insulation

Measurement and Analysis

Object Temperature Range

Range -20℃ to 150℃（-4°F to 302°F), Range 100℃ to 550℃（212°F to 1022°F）

Precision

Maximum (±2°C/3.6°F, ±2%) when ambient temperature is 15°C to 35°C (59°F to 95°F) and object temperature is above 0°C (32°F)

Measurement Tools

Center Point, Hot Point, Cold Point User definable: 10 points, 1 line, 5 rectangles and 5 circles

Level and Scope Mode

Auto/Manual/1-Touch Screen

Data Storage and Communication

Storage Media

Removable 32 GB Micro SD Card

Image Storage Capacity

Approximately 60,000 Images

Remarks

Voice memo: up to 60 seconds; Text note: up to 200 characters

Video Storage Capacity

Approximately 150 hours

Video File Format

MP4 video

FEATURES

EXPLANATION

Wifi

802.11 b/g/n (2,4 GHz ve 5 GHz)

Bluetooth

Bluetooth 4.2

USB Interface

USB Tip-C

Battery Type

Replaceable and rechargeable Li-ion battery

Battery Working Time

About 6 hours

Battery Charging Time

Approximately 4 hours full charge

Protection Level

IP54

Drop Test Height

2 m (6,56 ft)

Safety

IEC 61010-1

EMC

EN 50130-4, EN 55032, EN IEC 61000-3-2, EN 61000-3-3

Vibration

1 gr, IEC 60068-2-6

Shock

15 gr, IEC 60068-2-27

Operating Temperature Range

-10°C ila 50°C (-4°F ila 122°F)

Storage Temperature Range

-20°C ila 70°C (-4°F ila 158°F)

Relative humidity

< 95% non-condensing

Weight

Approx. 660g (1.46lb)

Size

244 × 100 × 104 mm (9,6 × 3,9 × 4,1 inç)

Tripod Mount

ÇK ¼”-20

Guarantee

There is a 3-year warranty for the entire product, 10 years for the detector and 2 years for the battery.

LED Light

Yes

Laser

Yes, Class II, Wavelength: 650 nm; Power: < 1mW
